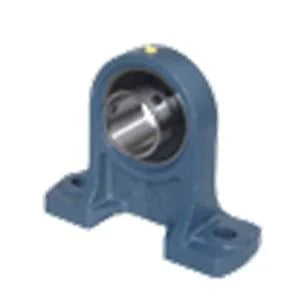

UCPH203 Bearing 17mm Pillow Block Mounted Bearing

UCPH203 Bearing 17mm Pillow Block Mounted Bearing

$31.49 USD
$34.99 USD $31.49 USD
Sale Sold out
Shipping calculated at checkout.
UCPH203 Bearing
Pillow Block Bearing
Cylindrical bore (with set screws)
17mm Inner Diameter Bearing

This unit is the high centerheight pillow type unit, It has a great resistance to impact loads. It is a suitable for machinery where greater base to center heights are required.Applications are Printing machinery and spinneret.

  • UCPH203 Bearing
  • high centerheight pillow unit
  • Bolt Size: M10
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC203
  • Quantity: One bearing

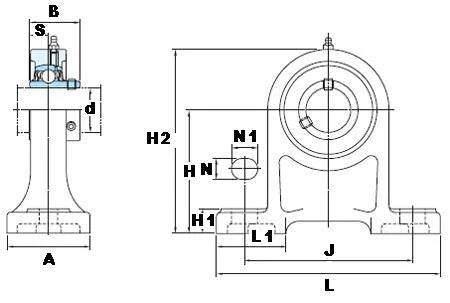

Dimensions (mm)
d H L A J N N1 H1 H2 L1 B S
17 70 127 40 95 13 19 15 101 46 31 12.7
