UCFA203 Black Oxide Plated Insert Adjustable Flange Cartridge Bearing Unit 17mm Mounted Bearing

UCFA203 Black Oxide Plated Insert Adjustable Flange Cartridge Bearing Unit 17mm Mounted Bearing

$44.99 USD
$49.99 USD $44.99 USD
Sale Sold out
Shipping calculated at checkout.
UCFA203 Black Oxide Plated Insert
Adjustable Flange Cartridge Unit
17mm Inner Diameter

UCFA203 Black Oxide Plated Insert Bearing Adjustable Flange Cartridge Unit, the inner Diameter is 17mm.

  • UCFA203 Black Oxide Plated Insert Bearing + Flange housing
  • Flange Cartridge Unit
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bolt Size: 5/16"
  • Bearing No: UC203 Black
  • Housing No: FA204
  • Quantity: 1 Bearing

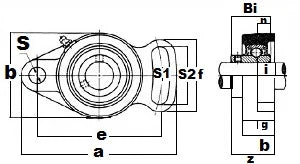

Dimensions (mm)
a e i g S S1 S2 b f z Bi n
102 77.8 15.1 11.9 9.9 9.9 36.1 60.3 54 33.3 31 12.7
