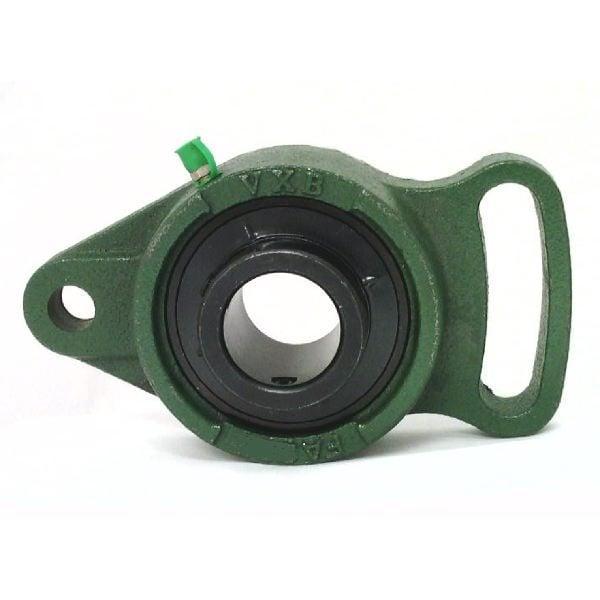

UCFA201-8 Black Oxide Plated Insert Flange Cartridge Bearing Unit 1/2" Bore Mounted Bearing

UCFA201-8 Black Oxide Plated Insert Flange Cartridge Bearing Unit 1/2" Bore Mounted Bearing

$53.99 USD
$59.99 USD $53.99 USD
Sale Sold out
Shipping calculated at checkout.
UCFA201-8 Black Oxide Plated Insert Flange Cartridge Unit
1/2" Inner Diameter

UCFA201-8 Black Oxide Plated Insert Flange Cartridge Unit, the inner Diameter is 1/2" inch. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance

  • UCFA201-8 Black Oxide Plated Insert Bearing + Flange housingi
  • Flange Cartridge Unit
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bolt Size: 5/16"
  • Bearing No: UC201-8
  • Housing No: FA204
  • Quantity: One bearing

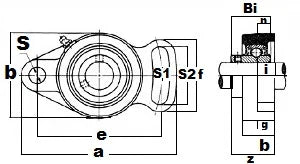

Dimensions (Inches)
a e i g S S1 S2 b f z Bi n
4-1/64" 3-1/16" 19/32" 15/32" 25/64" 25/64" 1-27/64" 2-3/8" 2-1/8" 1-1/32" 1.220" 1/2"
