VXB

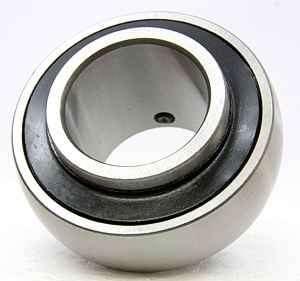

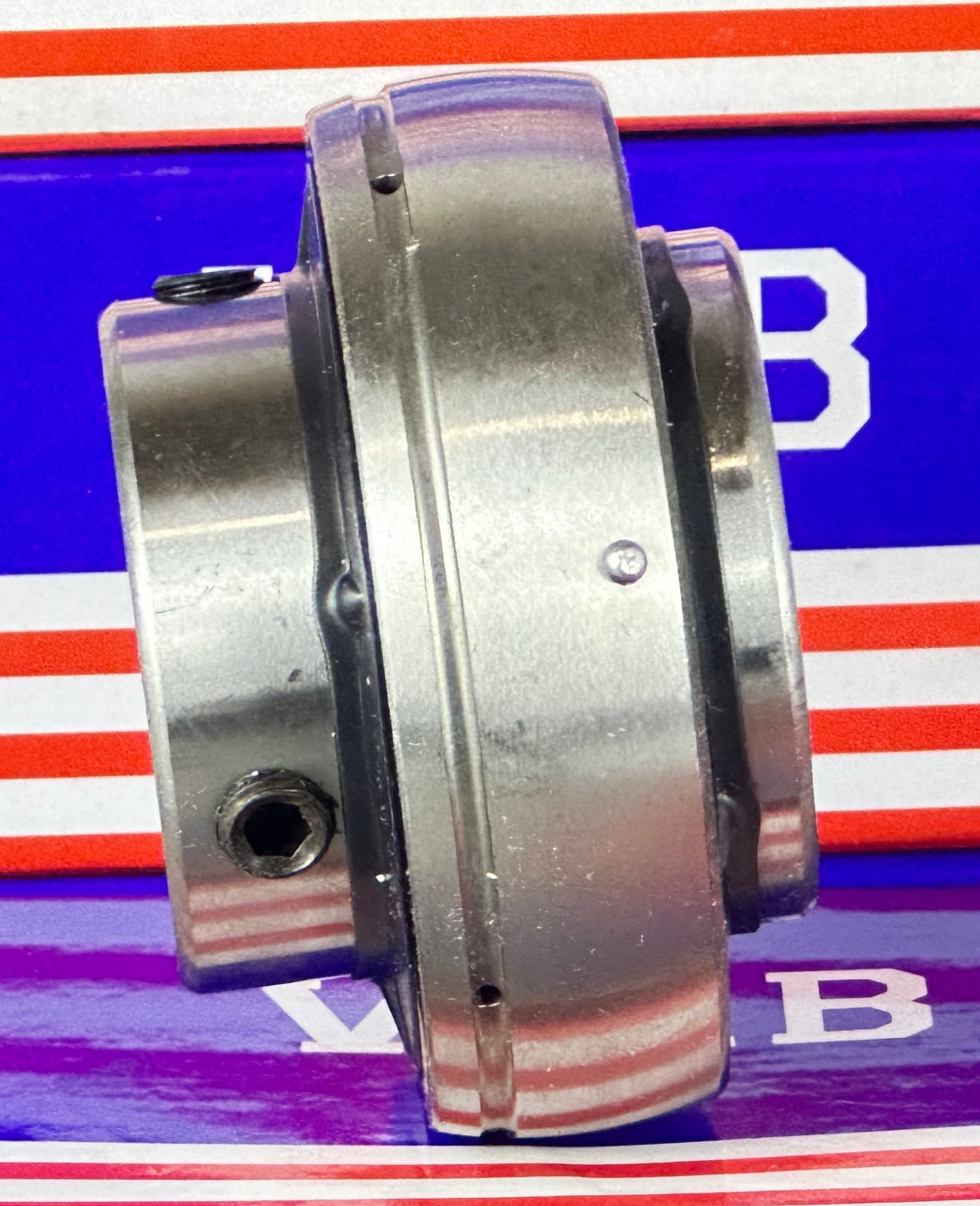

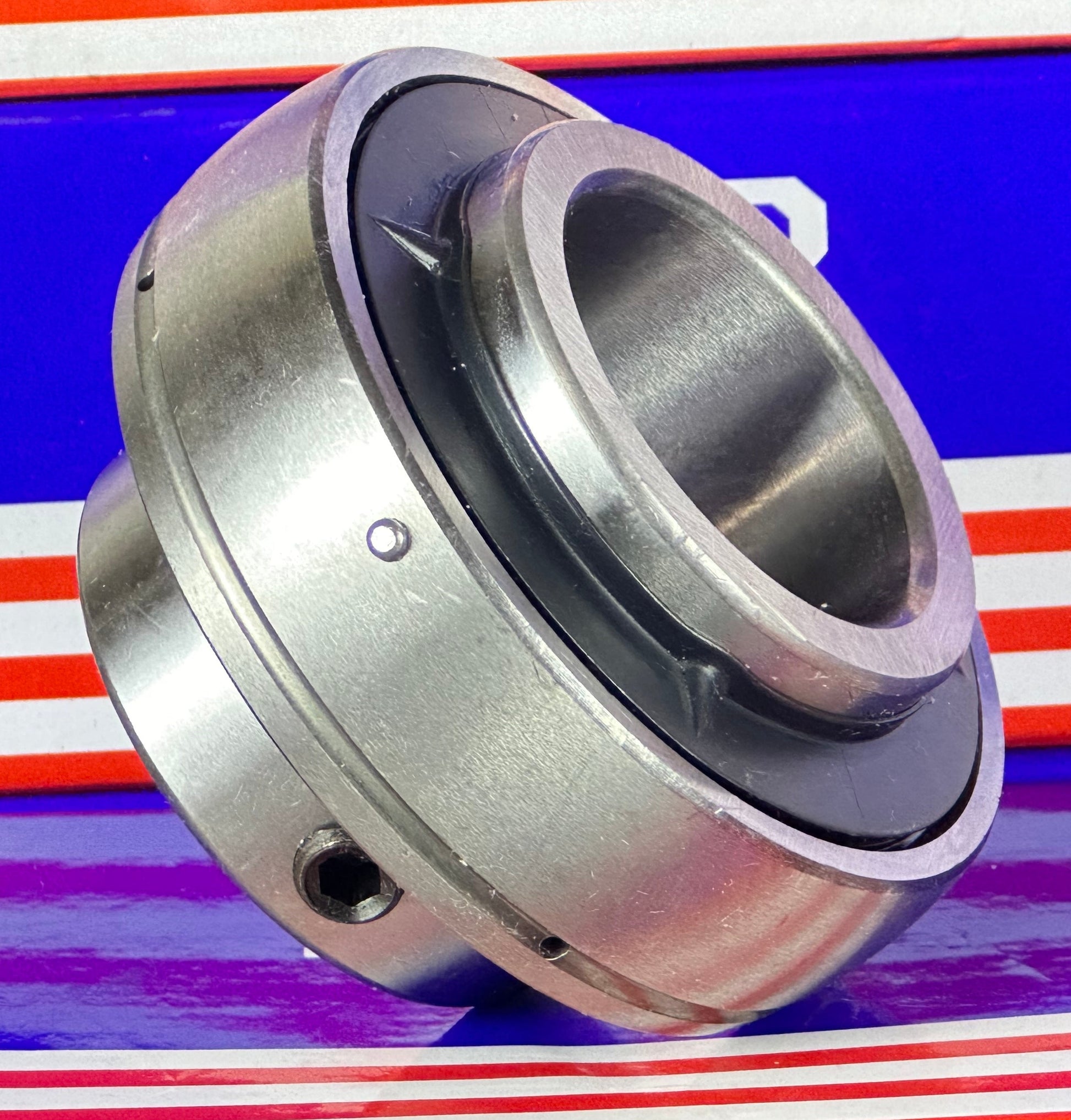

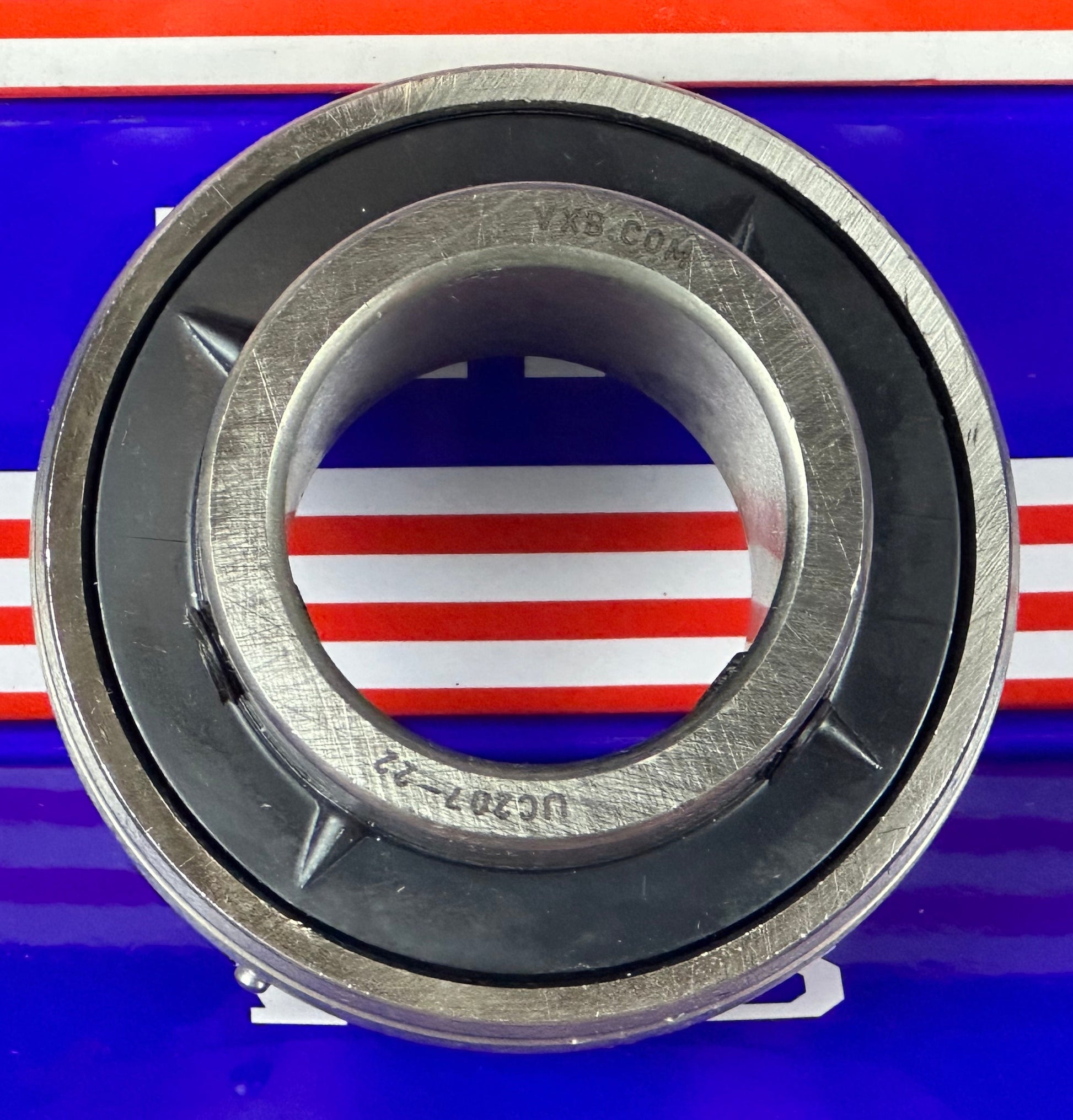

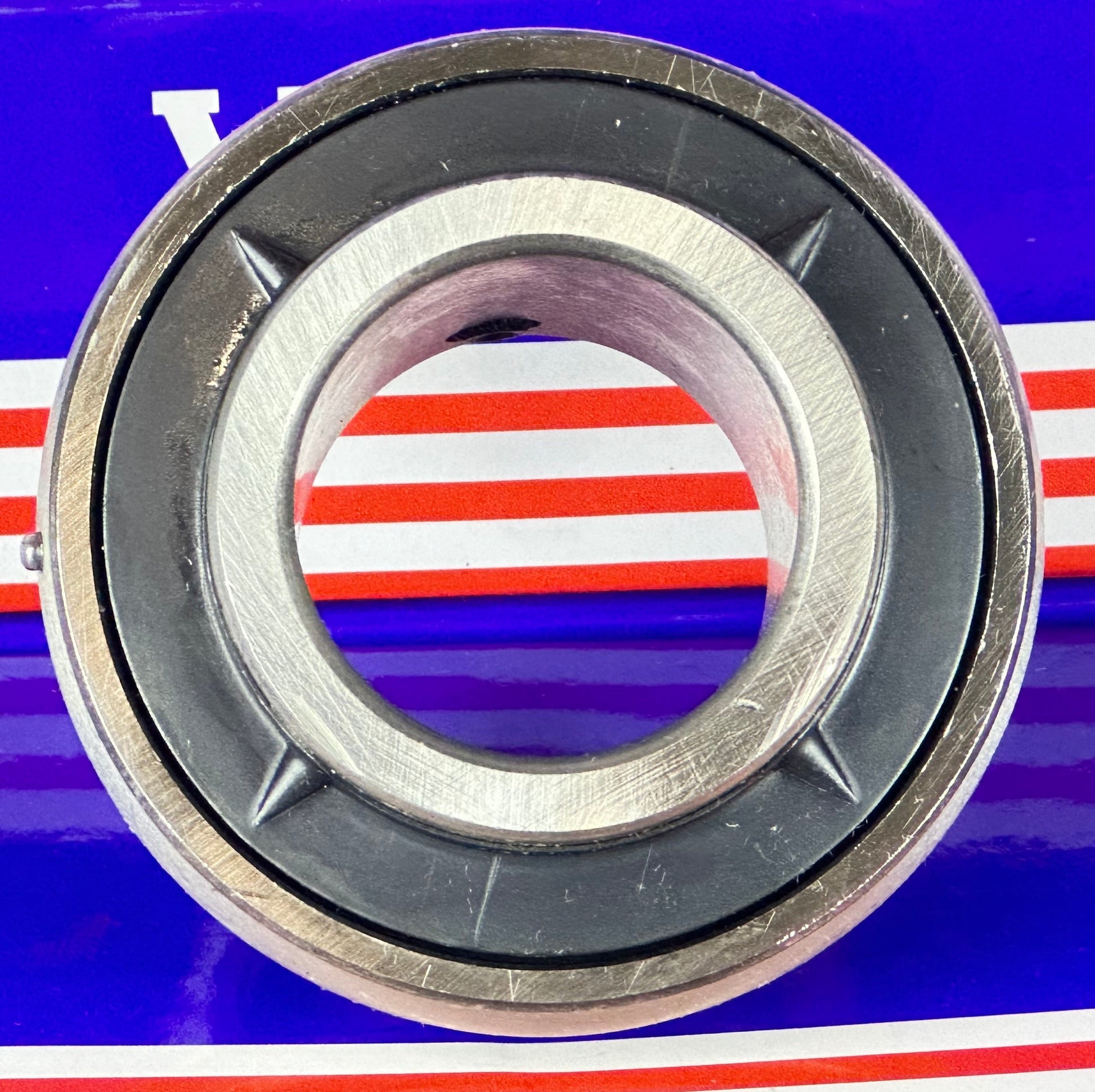

UC207-22 Bearing Insert 1-3/8" Mounted

UC207-22 Bearing Insert 1-3/8" Mounted

Regular price $35.99 USD
Regular price $39.99 USD Sale price $35.99 USD
Sale Sold out
Shipping calculated at checkout.

UC207-22 Bearing Insert
Set Screw Locking
1 3/8" Inch Inner Diameter



UC207-22 Bearing Insert, Bearing is standard duty, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.

  • UC207-22 Bearing
  • Shaft Diameter: 1 3/8" Inch
  • Dynamic Load Rating: 25710 N
  • Static Load Rating: 15302 N
  • Quantity: 1 Bearing
  • Ball Bearing

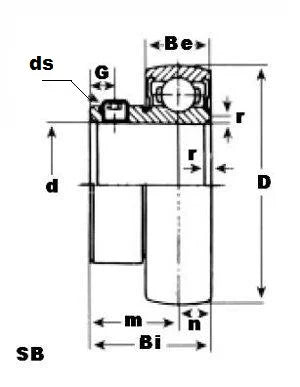

Dimensions (Inches)
D Bi Be r n m G W ds(UNF-Thread)
2-53/64" 1-11/16" 3/4" 5/64" 11/16" 1" 1/4" 1-27/32" 5/16-24x5/16
