UC207-20 black Oxide Plated Plated Insert 1 1/4 Bore Bearing

UC207-20 black Oxide Plated Plated Insert 1 1/4 Bore Bearing

$45.89 USD
$50.99 USD $45.89 USD
Sale Sold out
Shipping calculated at checkout.

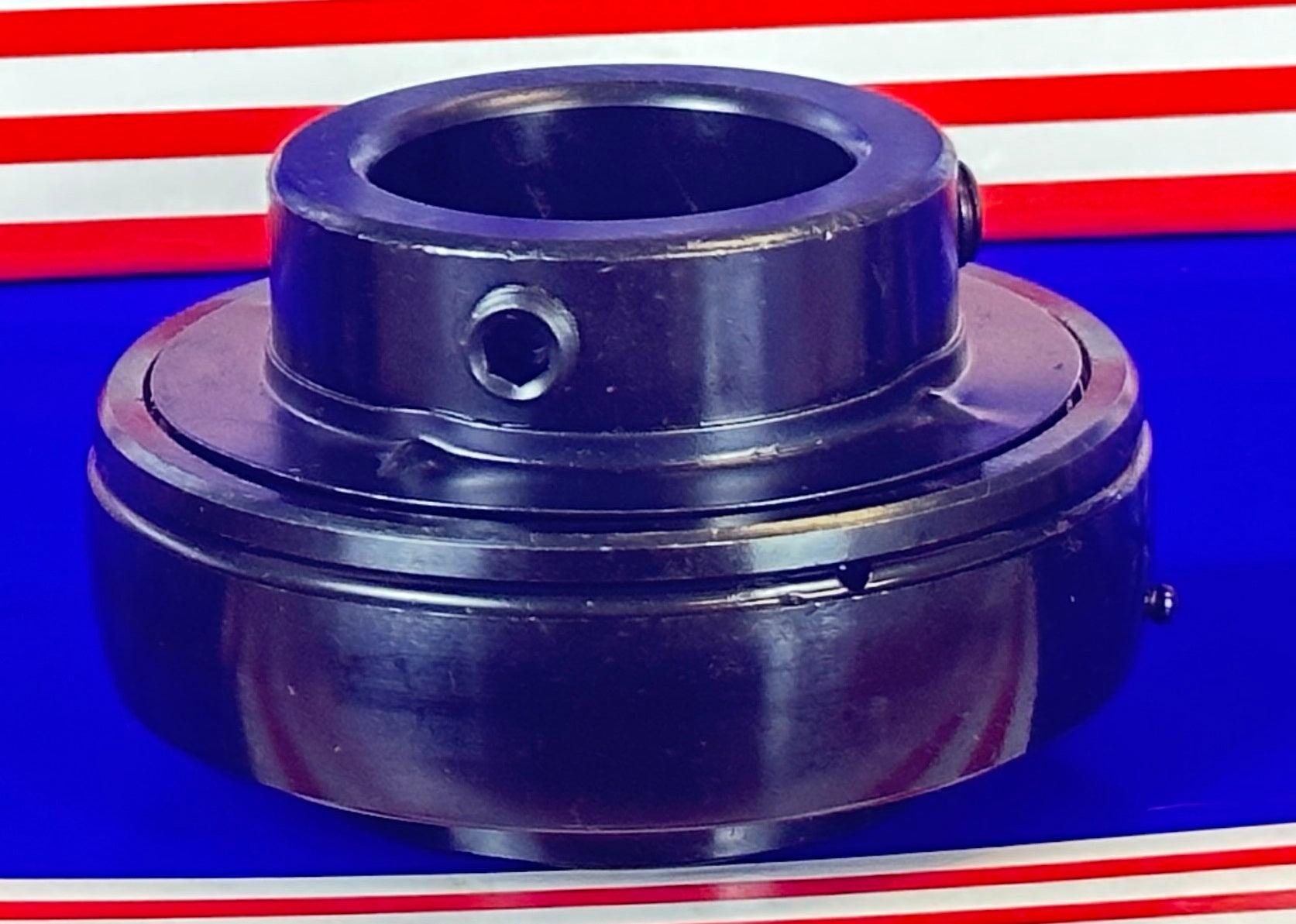

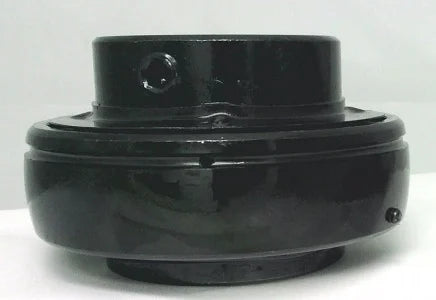

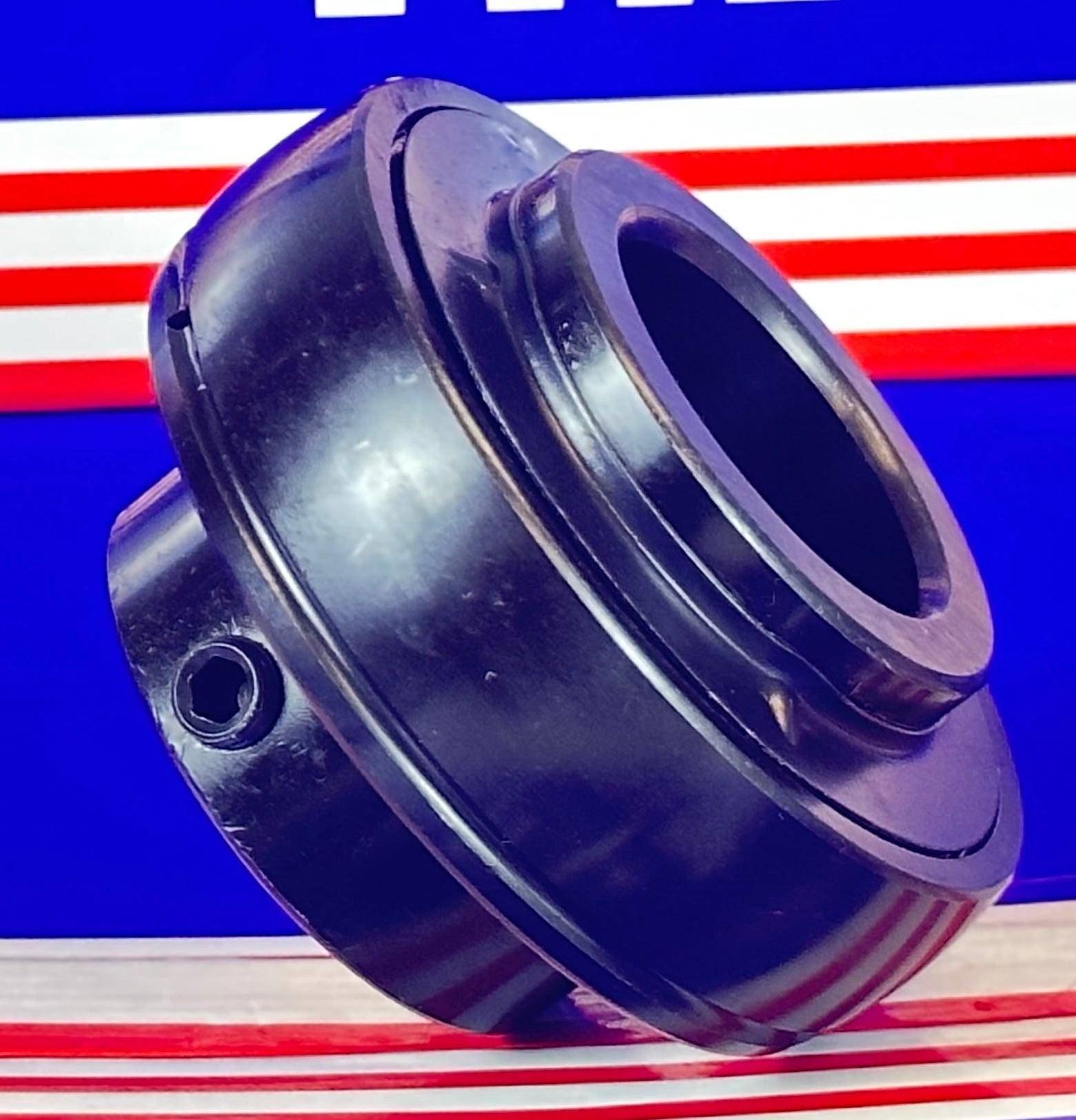

UC207-20 Black Oxide Plated Insert Ball Bearing
1 1/4" inch Inner Diameter


UC207-20 Black Oxide Plated Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is relubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A set screws.

  • UC207-20-BLK Bearing
  • Oxide Plated Insert Ball Bearing
  • Shaft Diameter: 1 1/4" inch
  • Dynamic load rating: 25666 N
  • Static load rating: 14012 N
  • Quantity: 1 Bearing

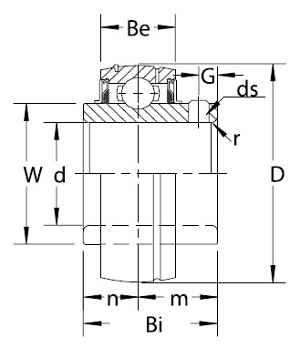

Dimensions (inches)
D Bi Be r n m G W ds(Unf-Thread)
2-53/64" 1-11/16" 3/4" 5/64" 11/16" 1" 1/4" 1-27/32" 5/16-24x5/16
