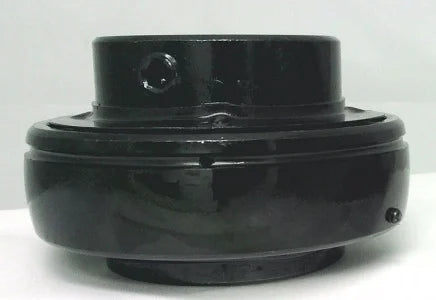

UC205-15 Black Oxide Plated Plated Insert 7/8 Bore Bearing
UC205-15 Black Oxide Plated Plated Insert 7/8 Bore Bearing
Regular price
$35.99 USD
Regular price
$39.99 USD
Sale price
$35.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| UC205-15 Black Oxide Plated Insert Ball Bearing 15/16" inch Inner Diameter |
|
UC205-15 Black Oxide Plated Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is re lubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, bearing is nylon patched class 3A set screws. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.
|

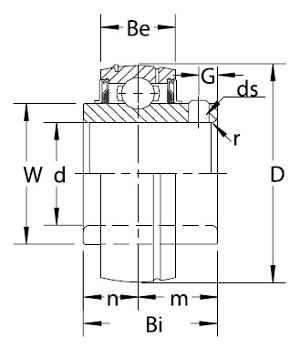

| Dimensions (inches) | ||||||||
|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | W | ds(Unf-Thread) |
| 2-3/64" | 1-21/64" | 19/32" | 19/32" | 9/16" | 49/64" | 7/32" | 1-21/64" | 1/4-28x1/4 |
