TWJ4WUU NB 1/4" Ball Bushing Adjustable Block Linear Motion

TWJ4WUU NB 1/4" Ball Bushing Adjustable Block Linear Motion

$159.29 USD
$176.99 USD $159.29 USD
Sale Sold out
Shipping calculated at checkout.

TWJ4WUU NB Type:Slide Unit
Pillow Block
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

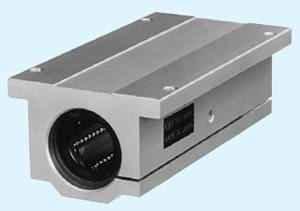

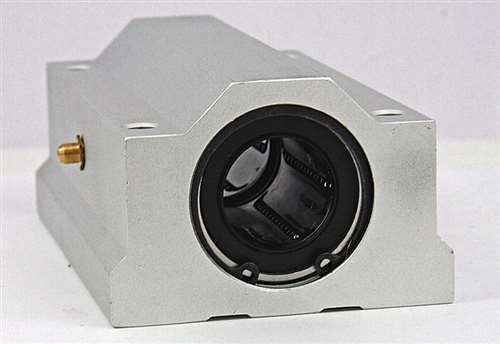

1/4" Double Wide Block, Slide Unit Pillow Block (Inch Series), the innerdiameter(bore) is 1/4" inch dimensions with steelretainer, bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • TWJ4WUU NB Bearing
  • Linear ball bushing
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 96 LBF
  • Static load rating Cor: 160 LBF

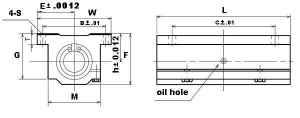

Major dimensions Mounting dimensions Shaft diameter inch
h E W L F T G M B C S
.437" .8125" 1.625" 2.5" .813" .188" .75" 1" 1.312" 2" .156" 1/4"
