TWJ4 NB 1/4" Ball Bushing Adjustable Block Linear Motion
TWJ4 NB 1/4" Ball Bushing Adjustable Block Linear Motion
Regular price
$79.99 USD
Regular price
$88.88 USD
Sale price
$79.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| TWJ4 Clearance Adjustable Block NB Type:Slide Unit Pillow Block Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
TWJ4 1/4" inch Clearance Adjustable Block Slide Unit Pillow Block (Inch Series), bearing is clearance adjustable block, the inner diameter (bore) is inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

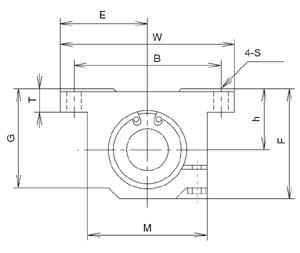

| Major dimensions | Mounting dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 0.437" | 0.813" | 1.625" | 1.188" | 0.813" | 0.188" | 0.75" | 1" | 1.312" | 0.75" | 0.156" |
