TWJ24 NB 1-1/2" Ball Bushing Adjustable Block Linear Motion
TWJ24 NB 1-1/2" Ball Bushing Adjustable Block Linear Motion
Regular price
$285.29 USD
Regular price
$316.99 USD
Sale price
$285.29 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| TWJ24 NB Clearance Adjustable Block NB Type:Slide Unit Pillow Block Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

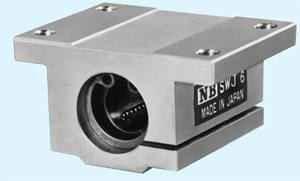

TWJ24 NB 1 1/2" inch Clearance Adjustable Block Slide Unit Pillow Block (Inch Series), the inner diameter (bore) is inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

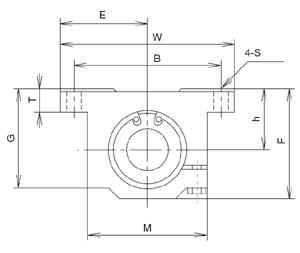

| Major dimensions | Mounting dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 1.75" | 2.375" | 4.75" | 4" | 3.25" | 0.5" | 2.875" | 3.5" | 4.125" | 2.5" | 0.281" |
