TWJ16WUU NB 1 inch Ball Bushing Adjustable Block Linear Motion

TWJ16WUU NB 1 inch Ball Bushing Adjustable Block Linear Motion

$399.60 USD
$444.00 USD $399.60 USD
Sale Sold out
Shipping calculated at checkout.

TWJ16WUU NB Type:Slide Unit
Pillow Block
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

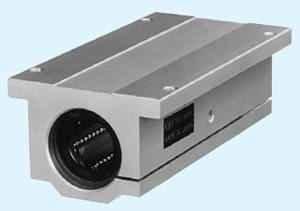

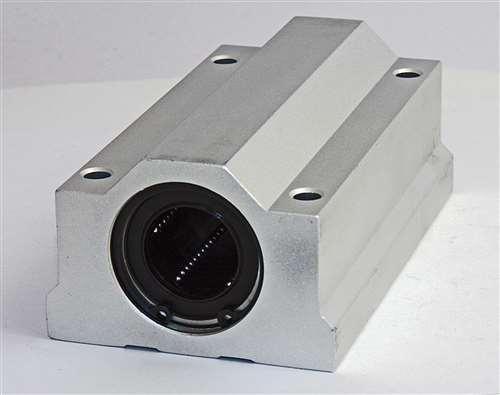

1" Double Wide Block, Slide Unit Pillow Block (Inch Series), the innerdiameter(bore) is 1" inch dimensions with steelretainer, bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • TWJ16WUU NB Bearing
  • Linear ball bushing
  • Shaft Diameter: 1" inch
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 1,360 LBF
  • Static load rating Cor: 2,120 LBF

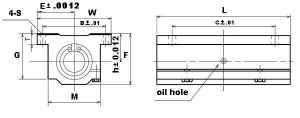

Major dimensions Mounting dimensions
h E W L F T G M B C S
1.187" 1.625" 3.25" 6" 2.188" .375" 1.938" 2.375" 2.875" 4.5" .219"
