TRKC50UU NB 50mm Slide Bush Bushings Motion Linear Bearing

TRKC50UU NB 50mm Slide Bush Bushings Motion Linear Bearing

$1,791.89 USD
$1,990.99 USD $1,791.89 USD
Sale Sold out
Shipping calculated at checkout.

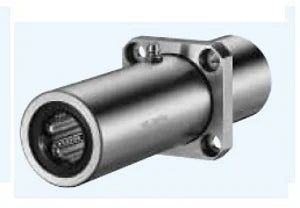

TRKC50UU NB Triple Wide Intermediate Position
Square Flange Slide Bush
Made in Japan:NB Linear Systems

TRKC50UU NB Triple Wide Intermediate Position Square Flange Miniature Slide Bush, The retainer material is steel, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.

  • TRKC50UU NB Bearing
  • Linear Slide Bush
  • Bearing Inner Diameter: 50mm
  • Retainer Material: steel
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 6080 N
  • Static Load Rating Cor: 15900 N

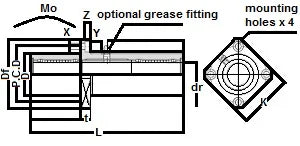

Major Dimensions
dr D L Df t P.C.D X x Y x Z
mm tolerance mm tolerance
50 0-21 85 0-35 290 129 18 107 11 x 17 x 11.1
