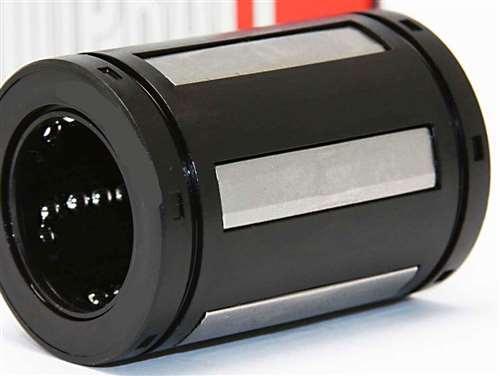

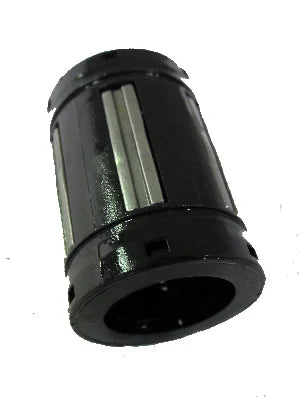

TK12 Self Aligning Ball Bushings 12mm Linear Motion

TK12 12 Bore High Load Standard type TopBall metric type linear motion ball bushings/bearing inner diameter(bore) is 12 mm dimensions with built-in seals. the Topball slide bush is a high performance bushing with three times the load capacity capable of providing up to 27 times normal travel life of a conventional slide bushing high accuracy grade linear bushings series mainly used in the USA.

• TK12 Ball Bearing
• Linear Motion Ball Bushing
• Ball circuit: 5
• Size: 12 x 22 x 32 mm
• Bearing Inner Diameter: 12 mm
• Bearing Outer Diameter: 22 mm
• Bearing Length: 32 mm
• Dynamic Load Rating: 1020 N
• Static Load Rating: 1290 N
• Quantity: 1 Bearing
