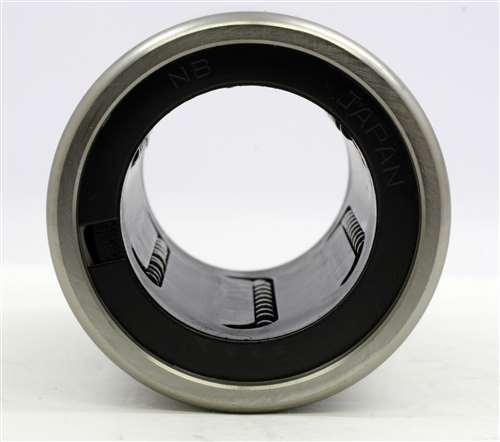

SWS24 NB 1-1/2" Ball Bushings Linear Motion

SWS24 NB 1-1/2" Ball Bushings Linear Motion

$317.24 USD
$234.99 USD $317.24 USD
Sale Sold out
Shipping calculated at checkout.
SWS24 NB Systems Ball Bushings Linear Motion
1 1/2" inch Inner Diameter

SWS24 linear motion ball bushing bearing, bearing inner diameter is 1 1/2" inch, bearing has steel retainer, bearing is anticorrosion, Bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • SWS24 Ball Bearing
  • NB Systems Ball Bushings Linear Motion
  • Shaft Diameter: 1 1/2" inch
  • Number of Circuits: 6
  • Dynamic Load Rating: 2180 N
  • Static Load Rating: 4020 N


Major dimensions and tolerance (inches) Eccentricity
(inch)		 Radial clearance
(inch)
dr D L B W D1
inch tolerance inch tolerance inch tolerance inch tolerance
1-1/2" 0-0.00035 2-3/8" 0-0.00075 3" 0-.012 2-13/32" 0-.012 5/64" 2-15/64" 0.0008 -0.0003
