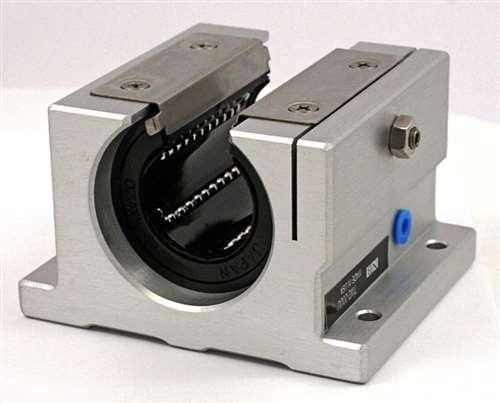

SWD24UU NB Ball Bushing 1-1/2" Open Block Linear Motion
SWD24UU NB Ball Bushing 1-1/2" Open Block Linear Motion
Regular price
$498.15 USD
Regular price
$369.00 USD
Sale price
$498.15 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SWD24UU sealed Slide Unit Block Type Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
1 1/2" Slide Unit Block Type (Inch Series), measures an inner diameter of 1 1/2" inch, bearing has steel retainer, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

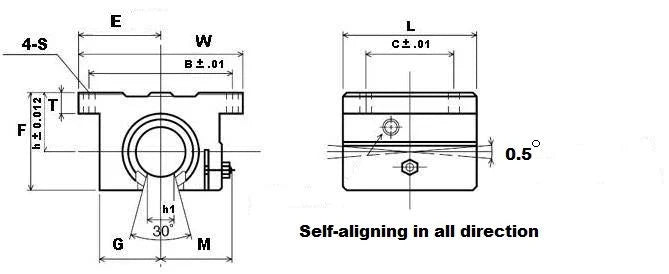

| Major dimensions | Mounting dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | h1 | B | C | S |
| 1-3/4" | 2-3/8" | 4-3/4" | 3-3/4" | 2-29/32" | 1/2" | 1-3/4" | 2-1/8" | 3/4" | 4-1/8" | 2-1/2" | 9/32" |
