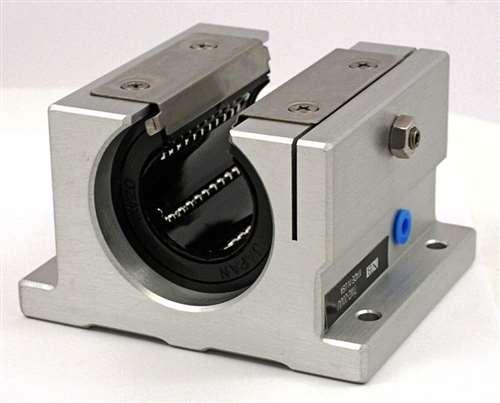

SWD12 NB Ball Bushing 3/4 inch Open Block Linear Motion
SWD12 NB Ball Bushing 3/4 inch Open Block Linear Motion
Regular price
$162.00 USD
Regular price
$120.00 USD
Sale price
$162.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SWD12 Slide Unit Block Type Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
3/4" Slide Unit Block Type (Inch Series), measures an inner diameter of 3/4" inch, bearing has steel retainer, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

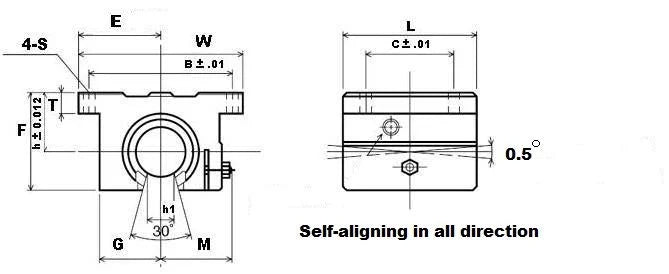

| Major dimensions | Mounting dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | h1 | B | C | S |
| 15/16" | 1-3/8" | 2-3/4" | 1-7/8" | 1-17/32" | 5/16" | 15/16" | 1-15/64" | 7/16" | 2-3/8" | 1-1/4" | 3/16" |
