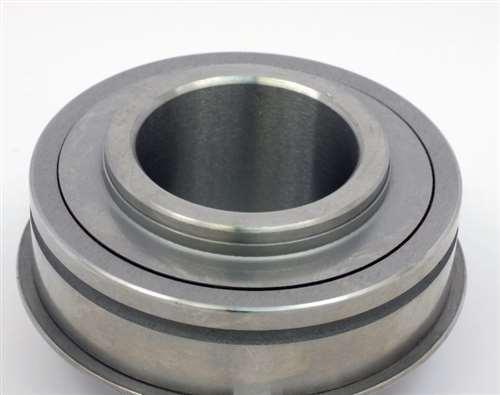

SUC205-16 Stainless Steel Insert Ball Bearing
1" inch Inner Diameter

SUC205-16 Stainless Steel Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is relubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, it has supplied with water/wash resistant mobilgrease.

  • SUC205-16 Bearing
  • Stainless Steel Insert Ball Bearing
  • Shaft Diameter: 1" inch
  • Dynamic load rating: 11210 N
  • Static load rating: 5730 N
  • Quantity: 1 Bearing

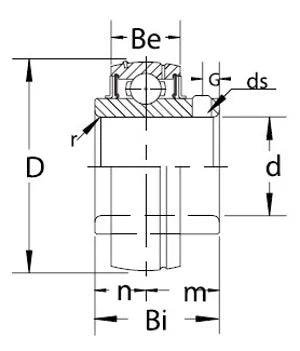

Dimensions (inches)
D Bi Be r n m G ds (Unf-Thread)
2-3/64" 1-11/32" 11/16" 0.059" 9/16" 25/32" 13/64" 1/4-28X1/4"
