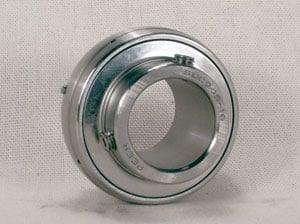

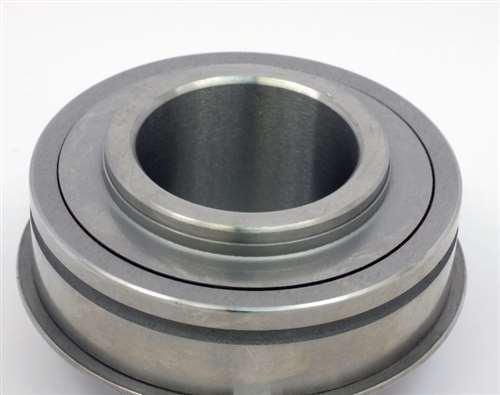

SUC204-12 Stainless Steel Insert Ball Bearing, bearing is wide inner ring with spherical outer ring, bearing is relubrication groove with oil hole on set screw side, bearing is anti-rotation pin on side opposite grease groove, it has supplied with water/wash resistant mobilgrease.
- SUC204-12 Bearing
- Stainless Steel Insert Ball Bearing
- Shaft Diameter: 3/4" inch
- Dynamic load rating: 10320 N
- Static load rating: 5018 N
- Quantity: 1 Bearing

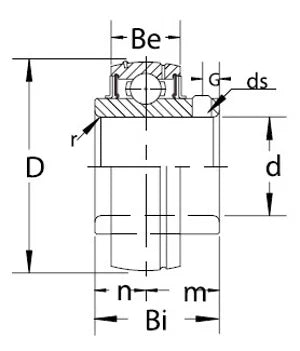

| Dimensions (inches) |
|---|
| D |
Bi |
Be |
r |
n |
m |
G |
ds (Unf-Thread) |
| 1-17/20" |
1-11/50" |
11/16" |
1/32" |
1/2" |
23/32" |
13/64" |
1/4-28x1/4 |
|
