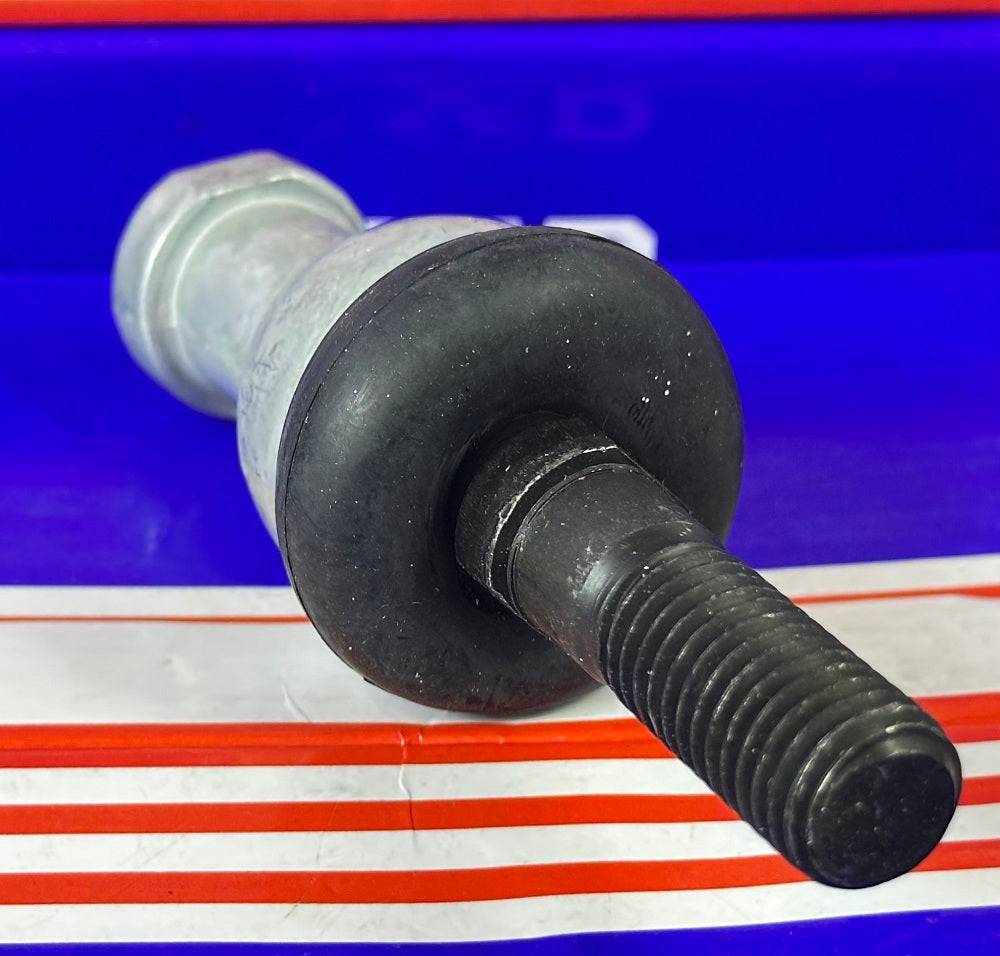

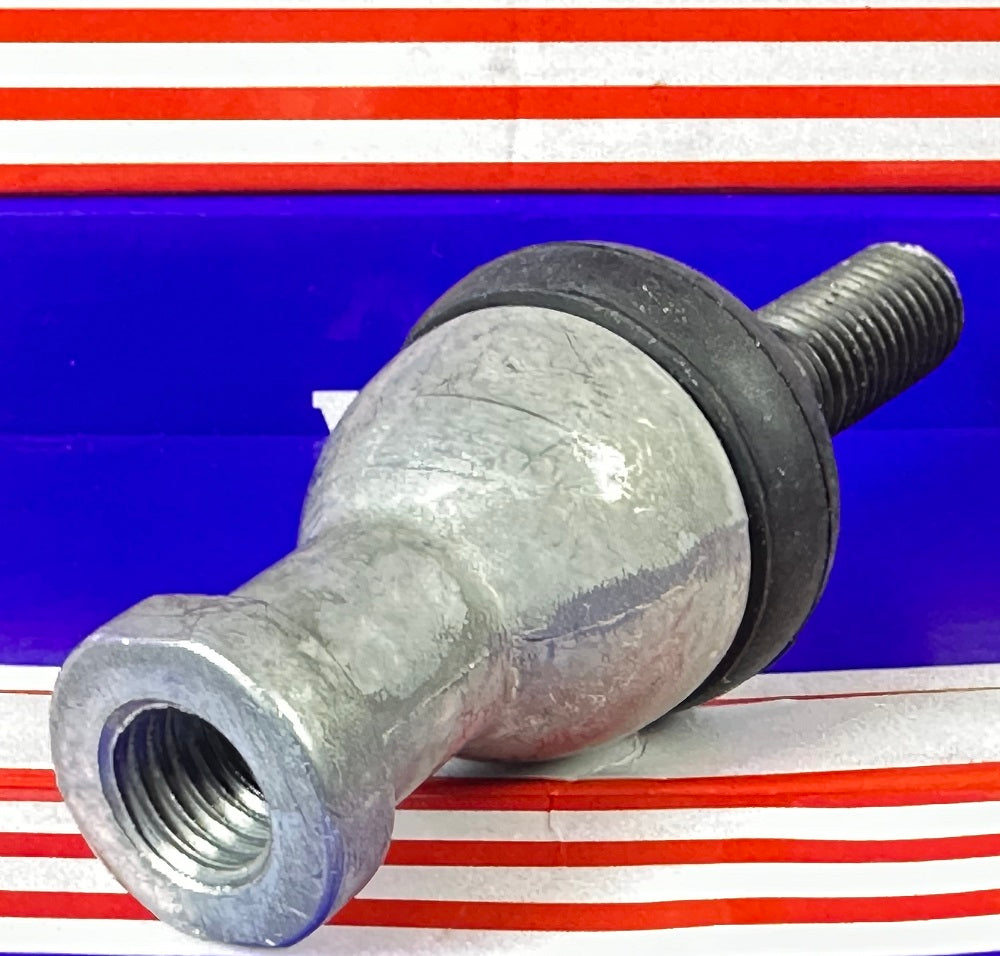

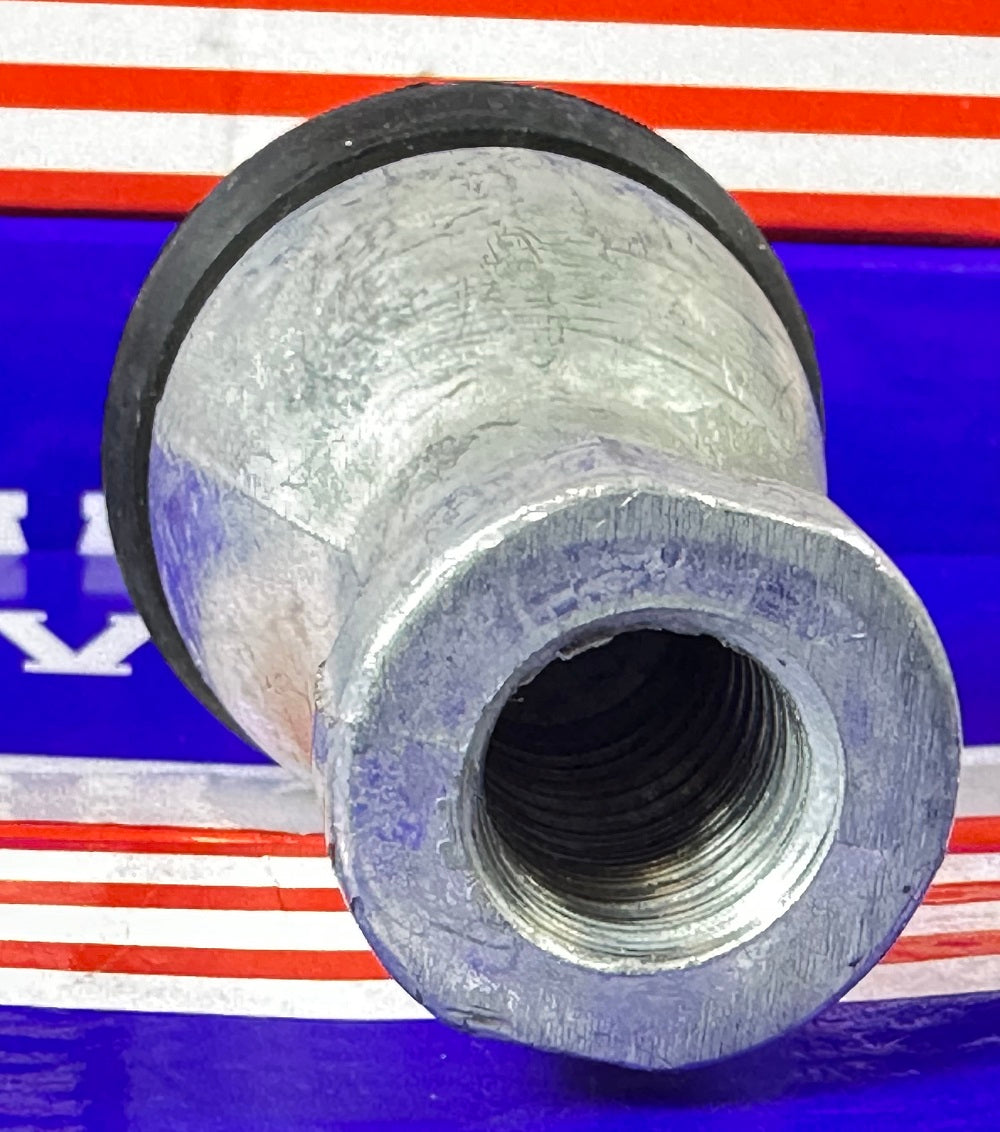

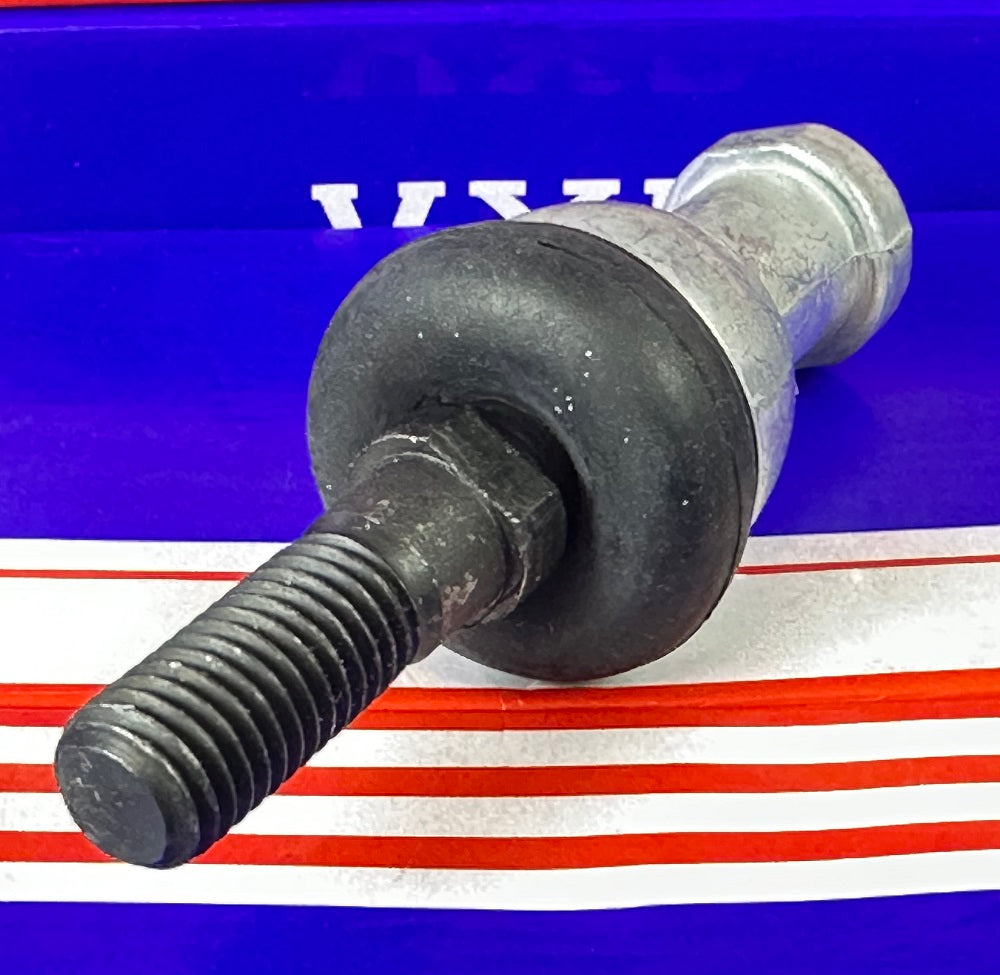

SQZ14-1 Straight Shape Ball Joint Rod End Bearing

SQZ14-1 Straight Shape Ball Joint Rod End Bearing

$33.73 USD
$24.99 USD $33.73 USD
Sale Sold out
Shipping calculated at checkout.

Straight Shape Ball joint Rod end bearing
SQZ14-1

Straight Shape Ball joint Rod end bearing SQZ14-1 The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.

  • SQZ14-1-1(Ball joint rod ends) Bearing
  • Male and female Ends
  • Quantity: 1 Bearing
  • Lubrication: Grease:
  • Inside Diameter:14 mm
  • Outside Diameter:d1= 38 mm
  • Thickness:L= 109 mm
  • Load rating: 15


Type d d1 d2
min		 d3
max		 l1
min		 l2 S1 L
max		 L1 L2
max		 L3
min		 D1
max		 D2
max		 D3
max		 S2 a
SQZ
14-1		 14 M14X2 19 38 28 23.5 17 109 45 8 25 20 25 36 22 11
