SMKC50GUU NB 50mm Slide Bush Bushings Motion Linear Bearing

SMKC50GUU NB 50mm Slide Bush Bushings Motion Linear Bearing

$753.29 USD
$836.99 USD $753.29 USD
Sale Sold out
Shipping calculated at checkout.

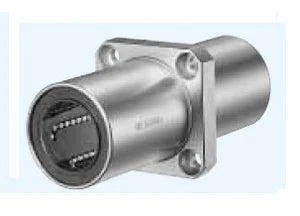

SMKC50GUU NB Center Mount Square Flange Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


 SMKC50GUU NB Center Mount Square Flange Linear Slide Bush, The retainer material is resin, Bearing is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
  • SMKC50GUU NB Bearing
  • Linear Slide Bush
  • Retainer Material: Resin
  • Bearing Inner Diameter: 50mm
  • Quantity: 1 Bearing
  • Dynamic Load Rating Cr: 6080 N
  • Static Load Rating Cor: 15900 N

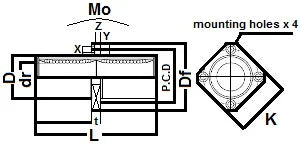

Major Dimensions
dr D L Df K t P.C.D X x Y x Z
mm tolerance mm tolerance mm tolerance
50 0-15 80 0-22 192 89.5 116 92 13 98 9 x 14 x 8.1
