SMK50GW 50mm Slide Bush Bushings Motion Linear Bearing

SMK50GW 50mm Slide Bush Bushings Motion Linear Bearing

$522.89 USD
$580.99 USD $522.89 USD
Sale Sold out
Shipping calculated at checkout.

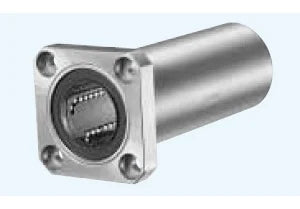

SMK50GW Square Flange Double wide Slide Bush
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


 SMK50GW Square Double wide Linear Slide Bush, The retainer material is resin, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
  • SMK50GW Bearing
  • Linear Slide Bush
  • Retainer Material: Resin
  • Bearing Inner Diameter: 50mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 6080 N
  • Static load rating Cor: 15900 N

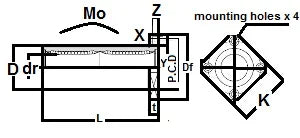

Major Dimensions
dr D L Df K t P.C.D X x Y x Z
mm tolerance mm tolerance
50 0-15 80 0-22 192 116 92 13 98 9 x 14 x 8.1
