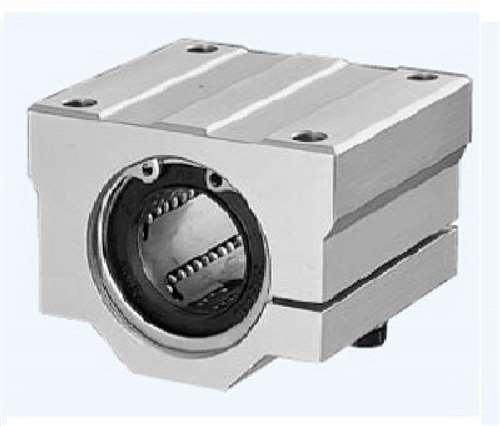

SMJ35GUU NB 35mm Adjustable Block Unit Motion Linear Bearing

SMJ35GUU NB 35mm Adjustable Block Unit Motion Linear Bearing

$212.39 USD
$235.99 USD $212.39 USD
Sale Sold out
Shipping calculated at checkout.
SMJ35GUU NB Open Block:Slide Unit
With Clearance Adjustable Type
Made in Japan:NB Linear Systems


SMJ35GUU NB Open Block With Clearance Adjustable Block Slide Unit, The inner diameter is 35mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • SMJ35GUU NB Bearing
  • Linear Ball Bushing
  • Shaft Diameter: 35mm
  • Adjusting Bolt Size: M5
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 1670 N
  • Static load rating Cor: 3140 N


Inner Contact Diameter Outer Dimensions Mounting Dimensions
h E W L F G T B C K S1
35 34 45 90 80 68 54 18 70 60 10 M8
