SME35GUU NB 35mm Open Block Unit Motion Linear Bearing

SME35GUU NB 35mm Open Block Unit Motion Linear Bearing

$396.90 USD
$441.00 USD $396.90 USD
Sale Sold out
Shipping calculated at checkout.

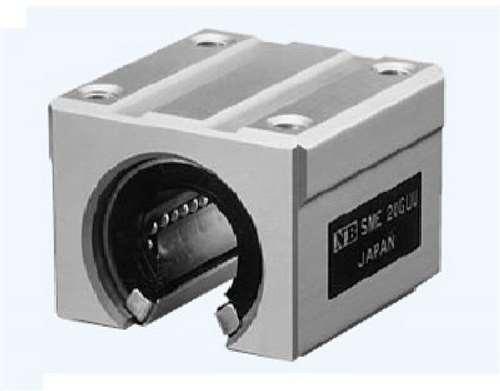

SME35GUU NB Open Block Type:Slide Unit
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


SME35GUU NB Open Block Slide Unit, The inner contact diameter is 35mm, The retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • SME35GUU NB Bearing
  • Linear Ball Bushing
  • Inner Contact Diameter: 35mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 1670 N
  • Static load rating Cor: 3140 N


Majar Dimensions
Inner Contact Diameter (mm) Outer Dimensions Mounting Dimension
h E W L F T h1 B C S
35 37 40 80 80 63 18 16 55 55 M8
