SMA60GWUU NB 60mm Slide Bush Bushings Motion Linear Bearing

SMA60GWUU NB 60mm Slide Bush Bushings Motion Linear Bearing

$755.09 USD
$838.99 USD $755.09 USD
Sale Sold out
Shipping calculated at checkout.
SMA60WGUU NB Double Wide Block Type:Slide Unit
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


SMA60WGUU NB Double Wide Block Slide Unit, The inner diameter is 60mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • SMA60WGUU NB Bearing
  • Linear Ball Bushing
  • Shaft Diameter: 60mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 4700 N
  • Static load rating Cor: 10000 N

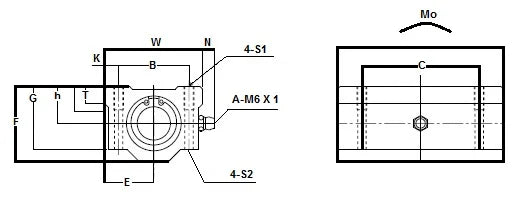

Outer Dimensions Mounting Dimensions
h E W L F G T B C K S1 S2
58 66 132 122 114 94 30 108 90 12 M12 10.7
