SMA50GUU NB 50mm Slide Bush Bushings Motion Linear Bearing

SMA50GUU NB 50mm Slide Bush Bushings Motion Linear Bearing

$266.39 USD
$295.99 USD $266.39 USD
Sale Sold out
Shipping calculated at checkout.

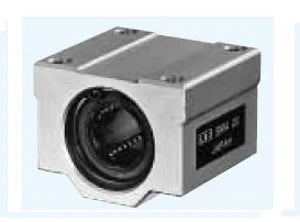

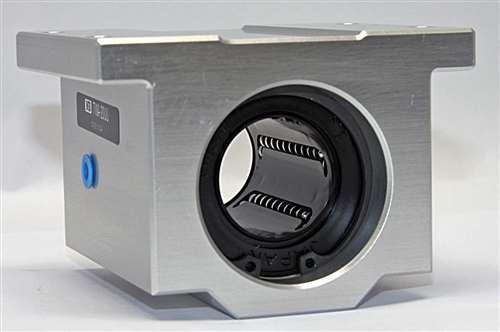

SMA50GUU NB Block Type:Slide Unit
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


SMA50GUU NB Block Slide Unit, The inner diameter is 50mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • SMA50GUU NB Bearing
  • Linear Ball Bushing
  • Shaft Diameter: 50mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 3820 N
  • Static load rating Cor: 7940 N

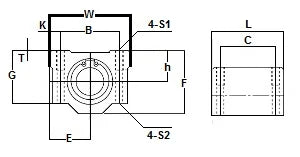

Outer Dimensions Mounting Dimensions
h E W L F G T B C K S1 S2
52 61 122 110 102 80 25 100 80 11 M10 8.7
