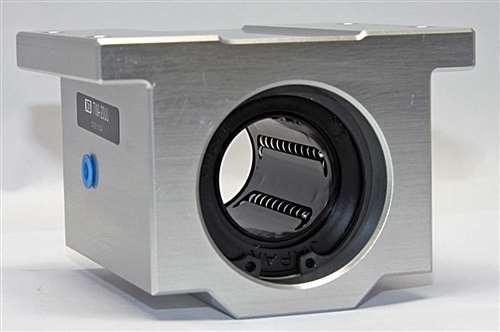

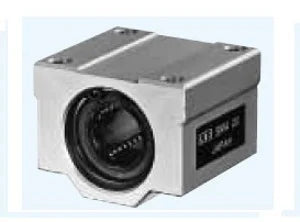

SMA13GUU NB 13mm Slide Bush Bushings Miniature Motion Linear Bearing

SMA13GUU NB 13mm Slide Bush Bushings Miniature Motion Linear Bearing

$53.99 USD
$59.99 USD $53.99 USD
Sale Sold out
Shipping calculated at checkout.
SMA13GUU NB Block Type:Slide Unit
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


SMA13GUU NB Block Slide Unit, The inner diameter is 13mm, Bearing is seals on both sides, The retainer material is resin, Bearing is a high accuracy grade linear bushings, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • SMA13GUU NB Bearing
  • Linear Ball Bushing
  • Shaft Diameter: 13mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 510 N
  • Static load rating Cor: 784 N

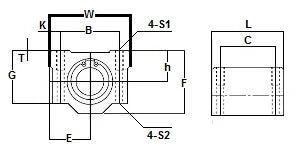

Outer Dimensions Mounting Dimensions
h E W L F G T B C K S1 S2
15 22 44 39 30 24.5 8 33 26 5.5 M5 4.3
