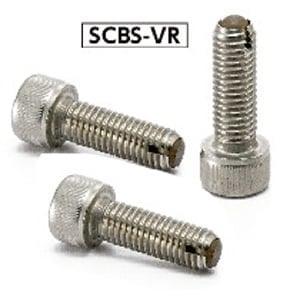

Clamping Cap Screws with Ventilation Hole
SCBS-M6-25-VR NBK
Made in Japan
One Screw

Characteristics:
  • SCBS-VR has a full ball to firmly secure workpiece at the contact point..

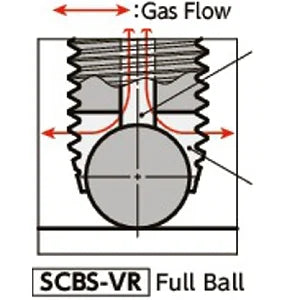

  • Ventilation holes and grooves easily release gas trapped in machines.
  • The thin fluorine coating keeps the ball highly lubricated, even after cleanroom washing.
  • This screw is used to secure work in vacuum devices and vacuum chambers, such as FPD production equipment and semiconductor devices
  • Cleanroom wash and cleanroom packing are completed.

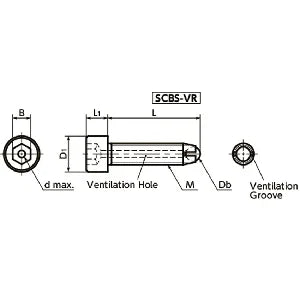

Part Number L M D1 L1 Db B d(max.) Quantity Per Pack
SCBS-M6-25-VR-NBK 25MM MM6 10MM 6MM 4MM 5MM 2 1
