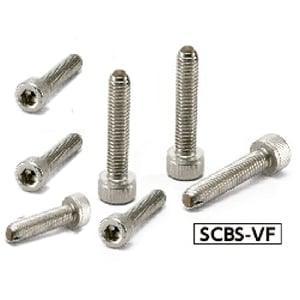

Clamping Cap Screws with Ventilation Hole
SCBS-M5-16-VF NBK
Made in Japan
One Screw

Characteristics:

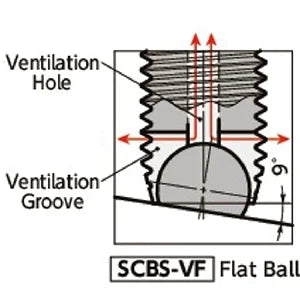

  • The contact surface of SCBS-VF is a flat ball. Workpiece is not damaged. The ball rotates flexibly up to 9√Ǭ∞. It clamps securely even when the opposing surface is tilted.
  • Ventilation holes and grooves easily release gas trapped in machines.
  • The thin fluorine coating keeps the ball highly lubricated, even after cleanroom washing.
  • This screw is used to secure work in vacuum devices and vacuum chambers, such as FPD production equipment and semiconductor devices
  • Cleanroom wash and cleanroom packing are completed.

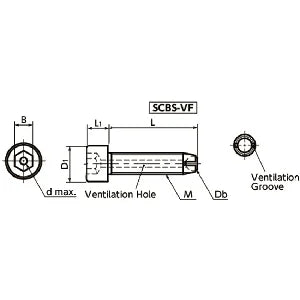

Part Number L M D1 L1 Db B d(max.) Quantity Per Pack
SCBS-M5-16-VF-NBK 16mm 5mm 8.5mm 5mm 3mm 4mm 1.5 1
