• SCBS-M10-40-VR NBK Clamping Cap Vacuum Vented Screws has a full ball to firmly secure workpiece at the contact point.
  • SCBS-M10-40-VR NBK Clamping Cap Vacuum Vented Screws has a full ball to firmly secure workpiece at the contact point.
  • SCBS-M10-40-VR NBK Clamping Cap Vacuum Vented Screws has a full ball to firmly secure workpiece at the contact point.
1 3

NBK

SCBS-M10-40-VR NBK Clamping Cap Vacuum Vented Screws has a full ball to firmly secure workpiece at the contact point.

SCBS-M10-40-VR NBK Clamping Cap Vacuum Vented Screws has a full ball to firmly secure workpiece at the contact point.

$87.75 USD
$65.00 USD $87.75 USD
Sale Sold out
Shipping calculated at checkout.

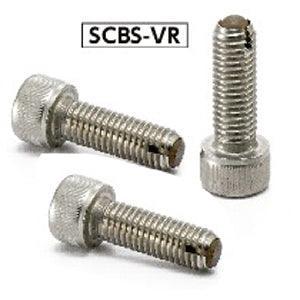

Clamping Set Screws with Ventilation Hole
SCBS-M10-40-VR NBK
One Screw

Characteristics:
  • This screw is used to secure work in vacuum devices and vacuum chambers, such as FPD production equipment and semiconductor devices.
  • The thin fluorine coating keeps the ball highly lubricated, even after cleanroom washing
  • Cleanroom wash and clean-room packing are completed.
  • Ventilation holes and grooves easily release gas trapped in machines.
  • SCBS-VR has a full ball to firmly secure workpiece at the contact point.
  • Application: Fixing and locating workpiece, Vacuum devices, FPD production equipment, semiconductor devices

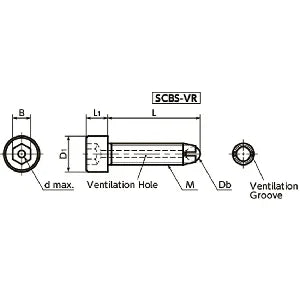

Part Number L M D1 L1 Db B d Quantity Per Pack
SCBS-M10-40-VR-NBK 40 10 16 10 7 8 3 1
