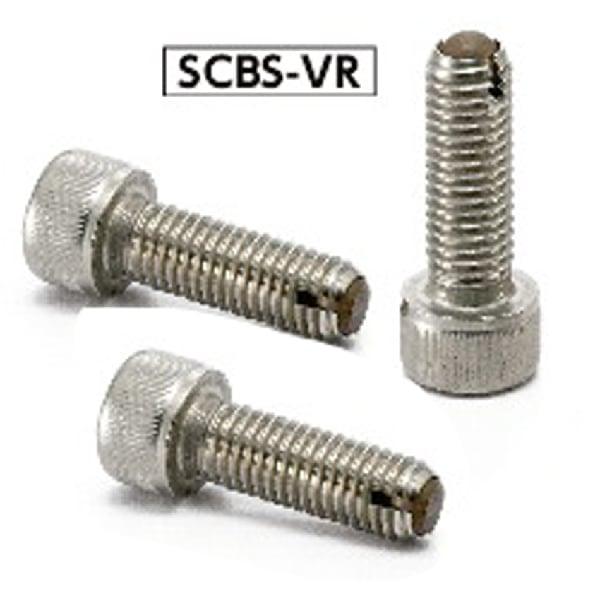

Clamping Set Screws with Ventilation Hole
SCBS-M10-25-VR NBK
One Screw

Characteristics:
  • This screw is used to secure work in vacuum devices and vacuum chambers, such as FPD production equipment and semiconductor devices.
  • The thin fluorine coating keeps the ball highly lubricated, even after cleanroom washing
  • Cleanroom wash and clean-room packing are completed.
  • Ventilation holes and grooves easily release gas trapped in machines.
  • SCBS-VR has a full ball to firmly secure workpiece at the contact point.
  • Application: Fixing and locating workpiece, Vacuum devices, FPD production equipment, semiconductor devices

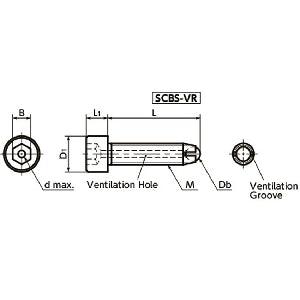

Part Number L M D1 L1 Db B d Quantity Per Pack
SCBS-M10-25-VR-NBK 25mm 10mm 16mm 10mm 7mm 8mm 3mm 1
