SCBS-M10-25-VF NBK Clamping Cap Vacuum Vented Screws - flat ball for Vacuum Devices Made in Japan

SCBS-M10-25-VF NBK Clamping Cap Vacuum Vented Screws - flat ball for Vacuum Devices Made in Japan

$54.89 USD
$60.99 USD $54.89 USD
Sale Sold out
Shipping calculated at checkout.

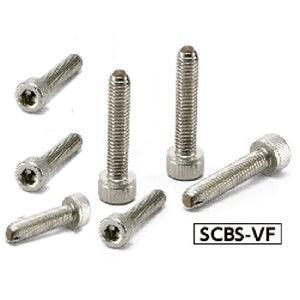

Clamping Cap Screws with Ventilation Hole
SCBS-M10-25-VF-NBK
Made in Japan
One Screw

Characteristics:

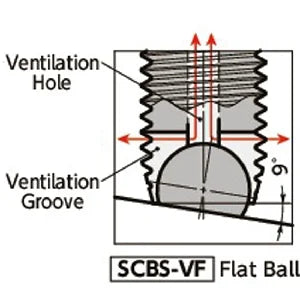

  • The contact surface of SCBS-VF is a flat ball. Workpiece is not damaged. The ball rotates flexibly up to 9√Ǭ∞. It clamps securely even when the opposing surface is tilted.
  • Ventilation holes and grooves easily release gas trapped in machines.
  • The thin fluorine coating keeps the ball highly lubricated, even after cleanroom washing.
  • This screw is used to secure work in vacuum devices and vacuum chambers, such as FPD production equipment and semiconductor devices
  • Cleanroom wash and cleanroom packing are completed.

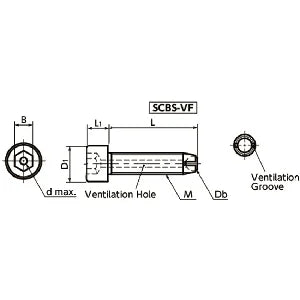

Part Number L M D1 L1 Db B D (max.) Quantity Per Pack
SCBS-M10-25-VF-NBK 25mm 10mm 16mm 10mm 7mm 8mm 3 1
