SC25UU 25mm Slide Unit Motion Bearing Bushing Block

SC25UU 25mm Slide Unit Motion Bearing Bushing Block

$26.99 USD
$29.99 USD $26.99 USD
Sale Sold out
Shipping calculated at checkout.
SC25UU Pillow Block Slide Unit
Slide unit with pre-installed 25mm ID Bearing
To be used with 25 mm Shafts


25mm Slide Unit Pillow Block (Inch Series), inner diameter(bore)is 25mm dimension with steel retainer, bearing is a high accuracy grade linear bushing.

  • SC25UU Shaft Support
  • Shaft diameter: 25mm
  • Dynamic Load Rating: 980 N
  • Static Load Rating: 1570 N

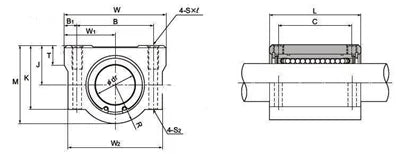

Dimensions (mm)
model No M W L B B1 C Sxl S2 J W1 K W2 T R Bore Bushing
SC25UU 51.5 76 67 54 11 50 M8x18 M6 26 38 41 68 12 25.5 25 LM25UU
