SBPP205 FYH Bearing 25mm Steel pillow type Mounted Bearing

SBPP205 FYH Bearing 25mm Steel pillow type Mounted Bearing

$35.99 USD
$39.99 USD $35.99 USD
Sale Sold out
Shipping calculated at checkout.
SBPP205 FYH Bearing
Steel plate pillow Bearing
Cylindrical bore (with set screws)
25mm Inner Diameter Bearing

This lightweight pillow type unit for minimal loads comprises a standard duty ball bearing and the pressed steel plate housing.Applications : Lightweight conveyor, environments exposed to light load and low speed rotation

  • SBPP205 Bearing
  • Steel plate pillow units
  • Bolt size: M10
  • Basic Load (Cr): 14,000 N
  • Basic Load (Cor): 7,850 N
  • Bearing No: SB205
  • Quantity: 1 Bearing

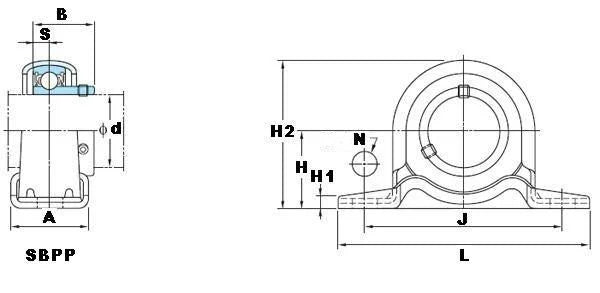

Dimensions (mm)
d H L A J N H1 H2 S B
25mm 28.6mm 108mm 32mm 86mm 11.5mm 4mm 56.6mm 7.5mm 27mm
