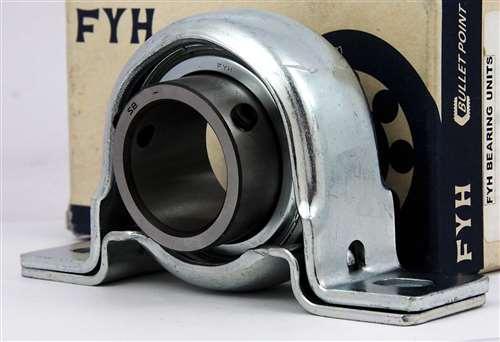

SBPP202 FYH Bearing 15mm Steel pillow type Mounted Bearing

SBPP202 FYH Bearing 15mm Steel pillow type Mounted Bearing

$35.99 USD
$39.99 USD $35.99 USD
Sale Sold out
Shipping calculated at checkout.
SBPP202 FYH Bearing
Steel plate pillow Bearing
Cylindrical bore (with set screws)
15mm Inner Diameter Bearing

This lightweight pillow type unit for minimal loads comprises a standard duty ball bearing and the pressed steel plate housing.Applications : Lightweight conveyor, environments exposed to light load and low speed rotation

  • SBPP202 Bearing
  • Steel plate pillow units
  • Bolt size: M8
  • Basic Load (Cr): 9,550 N
  • Basic Load (Cor): 4,800 N
  • Bearing No: SB202
  • Quantity: 1 Bearing

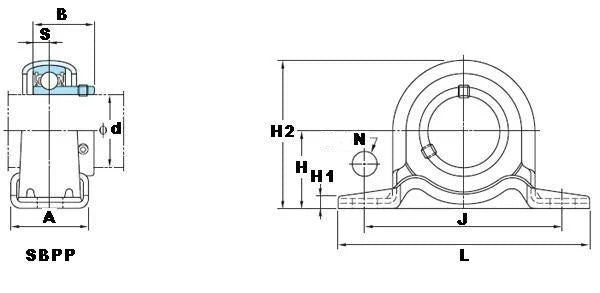

Dimensions (mm)
d H L A J N H1 H2 S B
15mm 22.2mm 86mm 25mm 68mm 9.5mm 3.2mm 43.8mm 6mm 22mm
