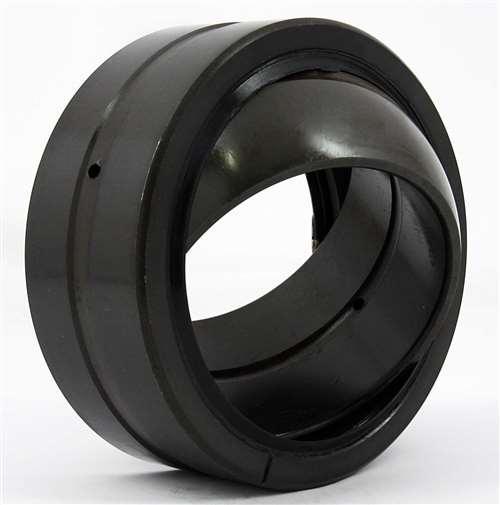

SBB10 Spherical Plain Bearing 5/8" x 1-1/16" x 35/64"

SBB10 Spherical Plain Bearing - Chrome Steel
✔️ 5/8" x 1-1/16" x 35/64" - One Bearing

The SBB10 spherical plain bearing is designed to handle misalignment and heavy loads in industrial and mechanical applications. Made from durable chrome steel, it allows for smooth angular motion under radial and axial forces.

✅ Inner diameter: 5/8 inch
✅ Outer diameter: 1-1/16 inch
✅ Width: 35/64 inch
✅ Made from high-strength chrome steel
✅ Designed for oscillating and tilting movements
✅ Handles misalignment in structural and mechanical linkages
✅ Dynamic load rating: 21.6 kN
✅ Static load rating: 65.5 kN
✅ Sold as one bearing

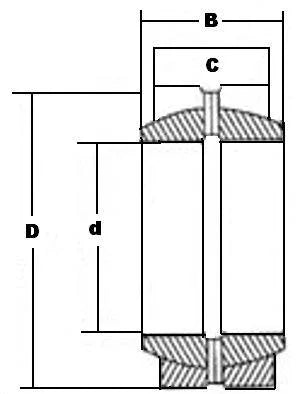

Dimensions (Inches):
✅ d: 5/8"
✅ D: 1-1/16"
✅ B: 35/64"
✅ C: 15/32"

💡 What are spherical plain bearings used for?
Spherical plain bearings are built to accommodate angular motion and misalignment, often used in suspension systems, hydraulic cylinders, or pivot joints in heavy machinery. Their design allows for a wide range of movement under heavy loads.

A rugged solution for pivoting connections where standard bearings just won't do.
