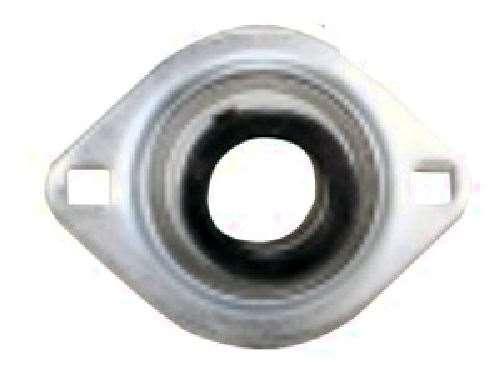

RCSMRFZ-25mm Bearing Flange Insulated Pressed Steel 2-Bolt 25mm

RCSMRFZ-25mm Flange Ball Bearing – 25mm Shaft Diameter
✔️ Rubber Insulated – 2-Bolt Pressed Steel Housing – Set Screw Lock

The RCSMRFZ-25mm is a light-duty, rubber-insulated flange ball bearing unit designed for quiet operation in compact or vibration-sensitive spaces. It features a one-piece pressed steel housing with conductive rubber lining to reduce noise and vibration. The set screw locking system keeps the bearing secure, while the flush-mount, zinc-plated design makes it ideal for tight mounting areas.

✅ Type: Flange ball bearing unit with rubber insulation
✅ Shaft diameter: 25mm
✅ Housing: Pressed steel, zinc-plated
✅ Mounting: 2-bolt flange with flush design
✅ Rubber liner: Conductive RCSM-16 insulation for noise/vibration reduction
✅ Locking: Set screw style
✅ Seals: RST metal shroud full-cover seals
✅ Bearing number: FHSR205-25mm
✅ Housing number: RF-5Z
✅ Quantity: 1 bearing
✅ Bolt size: 3/8" inch

Dimensions (mm):

💡 Why use rubber insulated flange bearings in light-duty applications?
Rubber insulation helps absorb vibration and reduce noise, making these units ideal for fans, small motors, and equipment where quiet operation is key. The pressed steel housing offers an affordable, lightweight solution.
