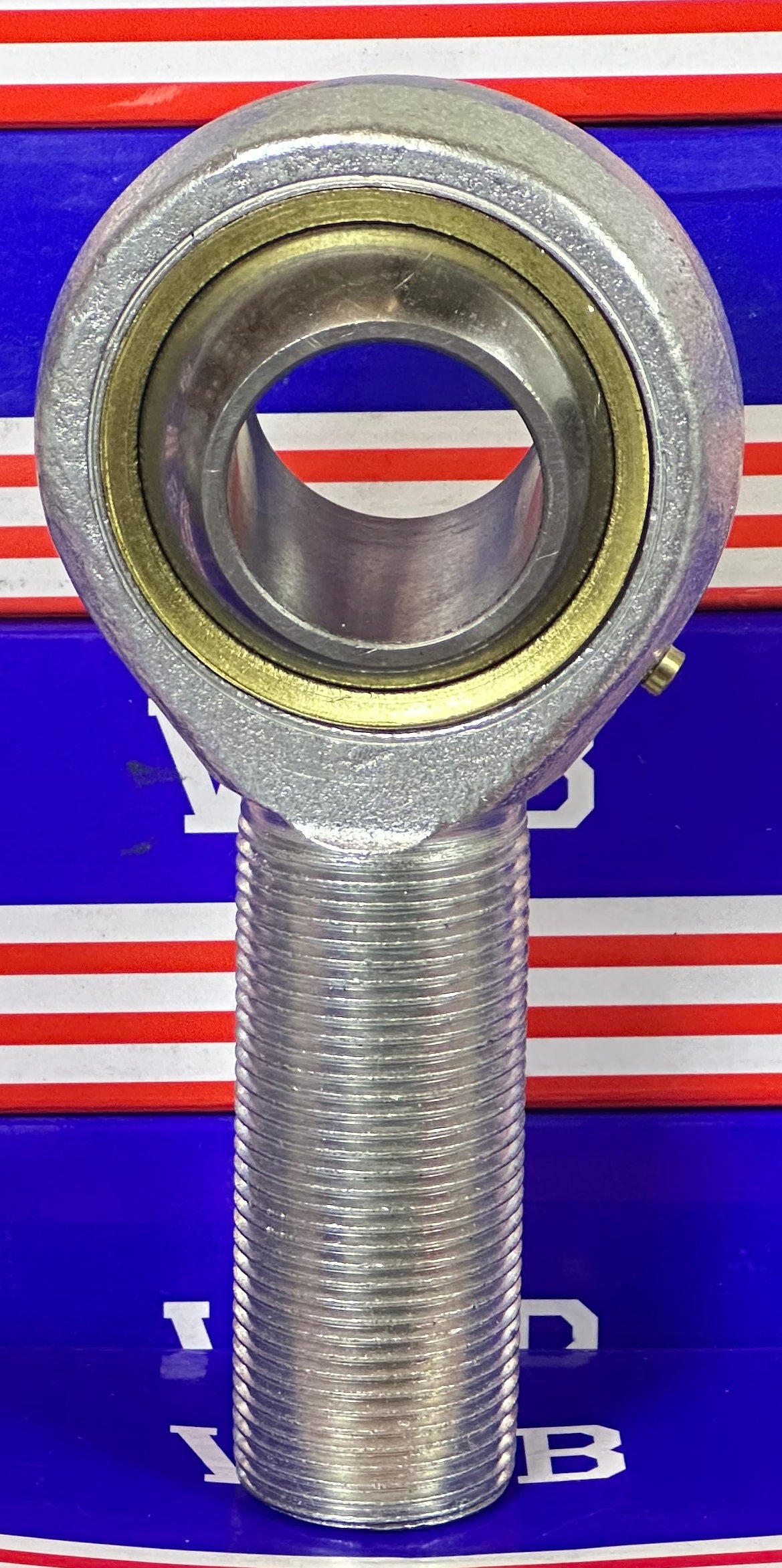

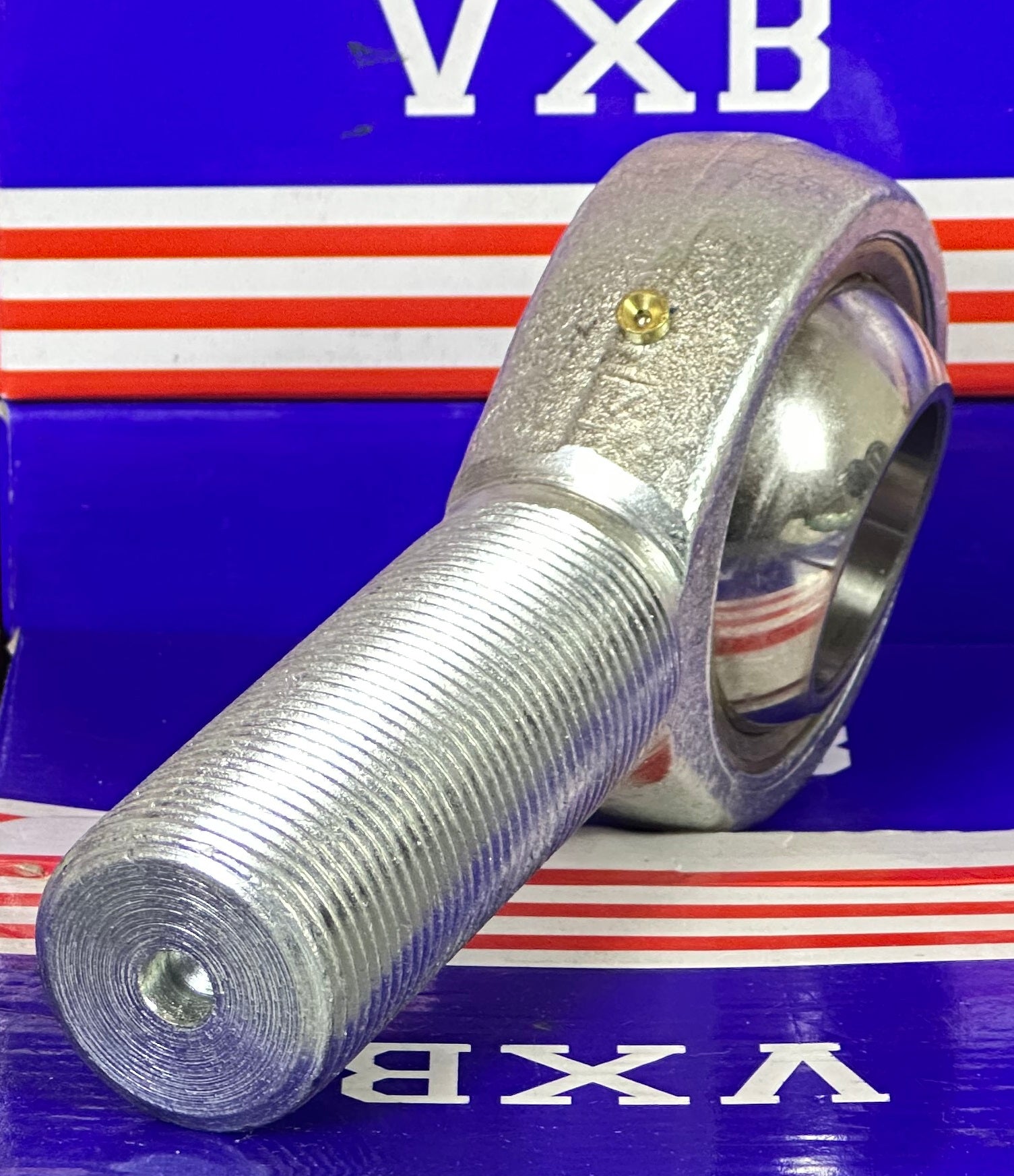

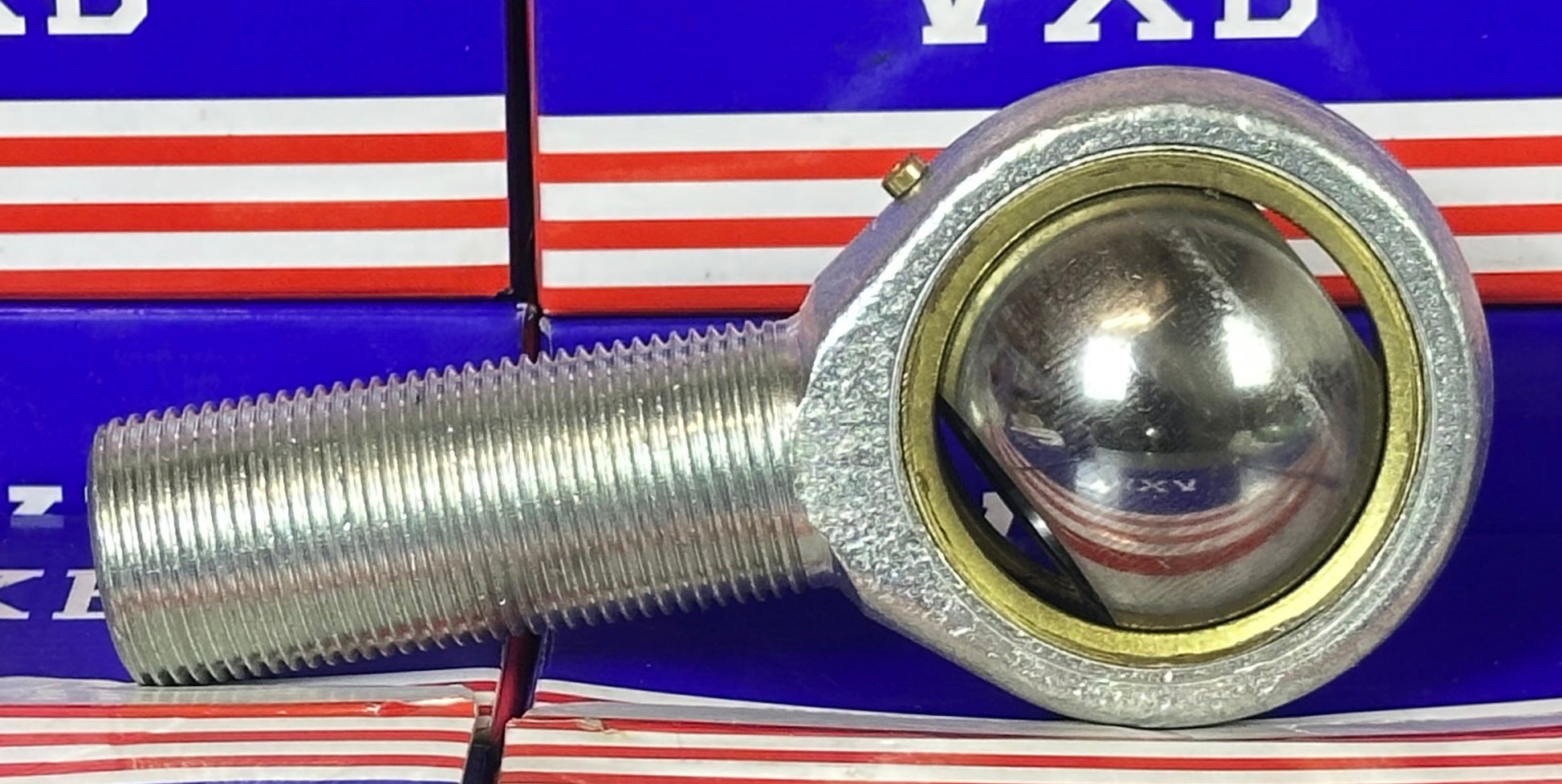

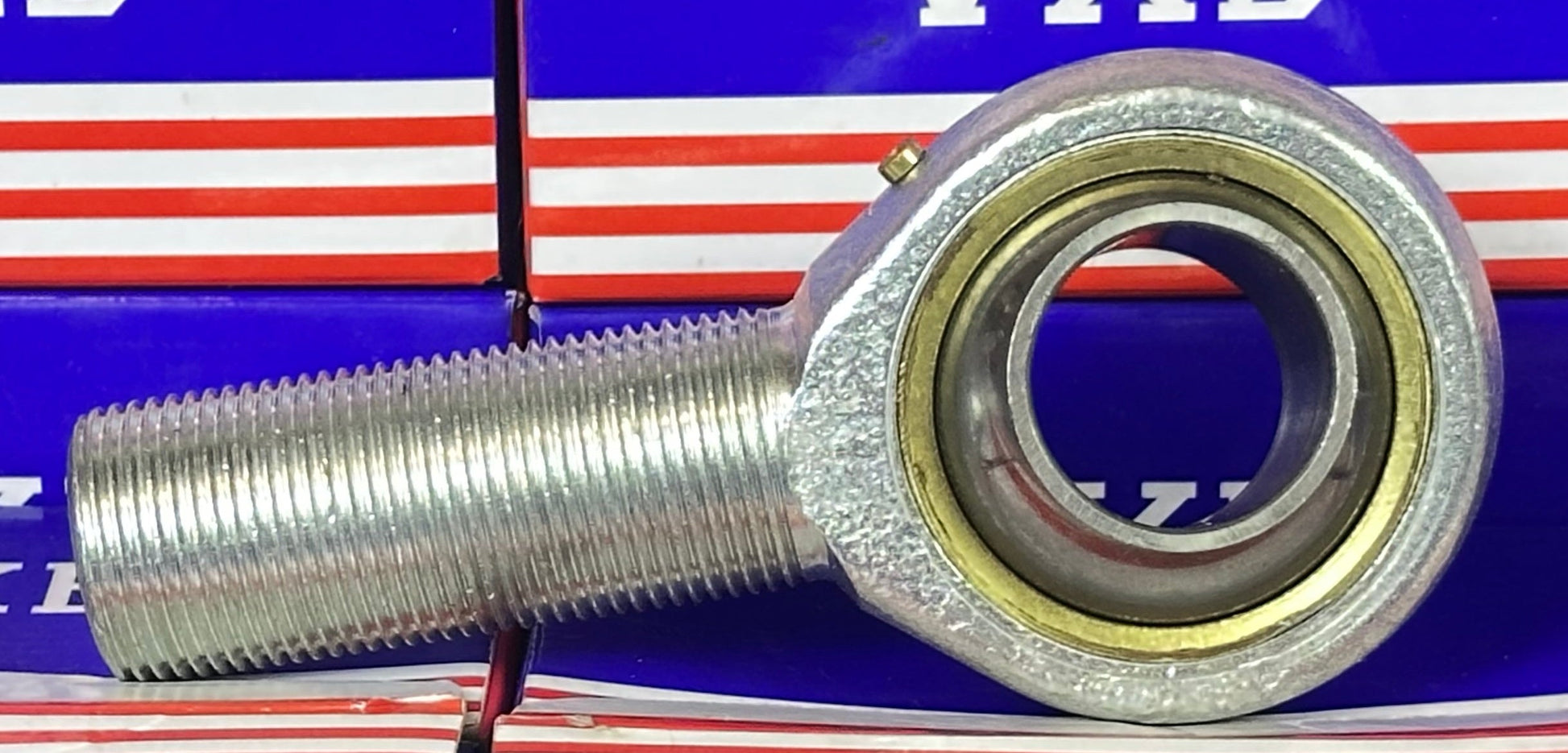

POS30 Male Rod End 30mm - Right Hand - Heavy-Duty Heim Joint

POS30 Male Rod End - Right Hand
✔️ 30mm Bore - M30x2 Thread, Heavy-Duty Heim Joint

The POS30 is a rugged male rod end bearing designed for high-load applications with 30mm shafts. Featuring a right-hand thread and precision articulation, it’s commonly used in hydraulic cylinders, steering systems, and heavy-duty machinery. Fully interchangeable with IKO POS 30, ELGES GAKFR 28 PB, and others.

✅ Inner diameter (bore): 30mm
✅ Thread type: M30 x 2 (Right Hand)
✅ Type: Heavy-duty Heim joint rod end bearing
✅ Dynamic load rating: 62,000 N
✅ Static load rating: 92,000 N
✅ Interchangeable with: IKO POS 30, ELGES GAKFR 28 PB, SAKAC 28 M, HIRSCHMANN SM 28
✅ Quantity: 1 bearing

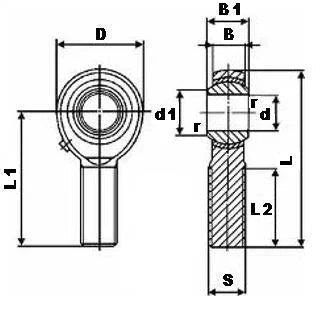

📏 Dimensions Table (Metric):

💡 When is a right-hand rod end the better choice?
Right-hand rod ends are ideal for standard-thread setups and are often used in combination with left-hand units to allow simple, balanced adjustment in tension rods and linkages.

Built tough for heavy mechanical systems where strength and adjustability are essential.
