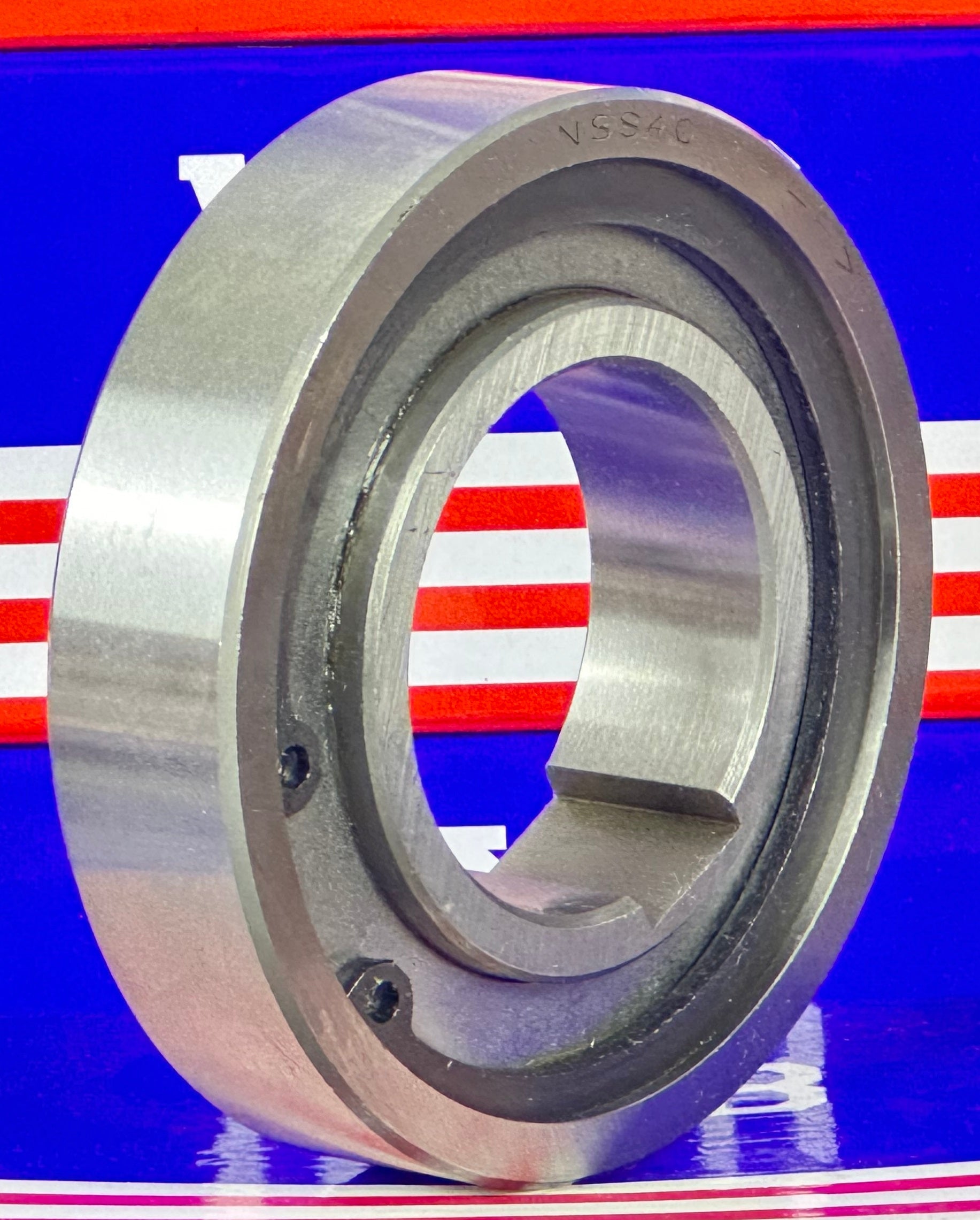

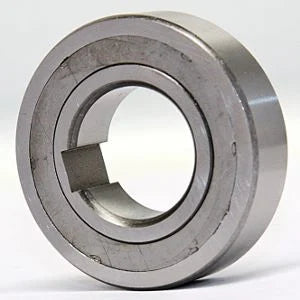

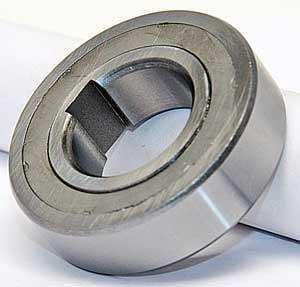

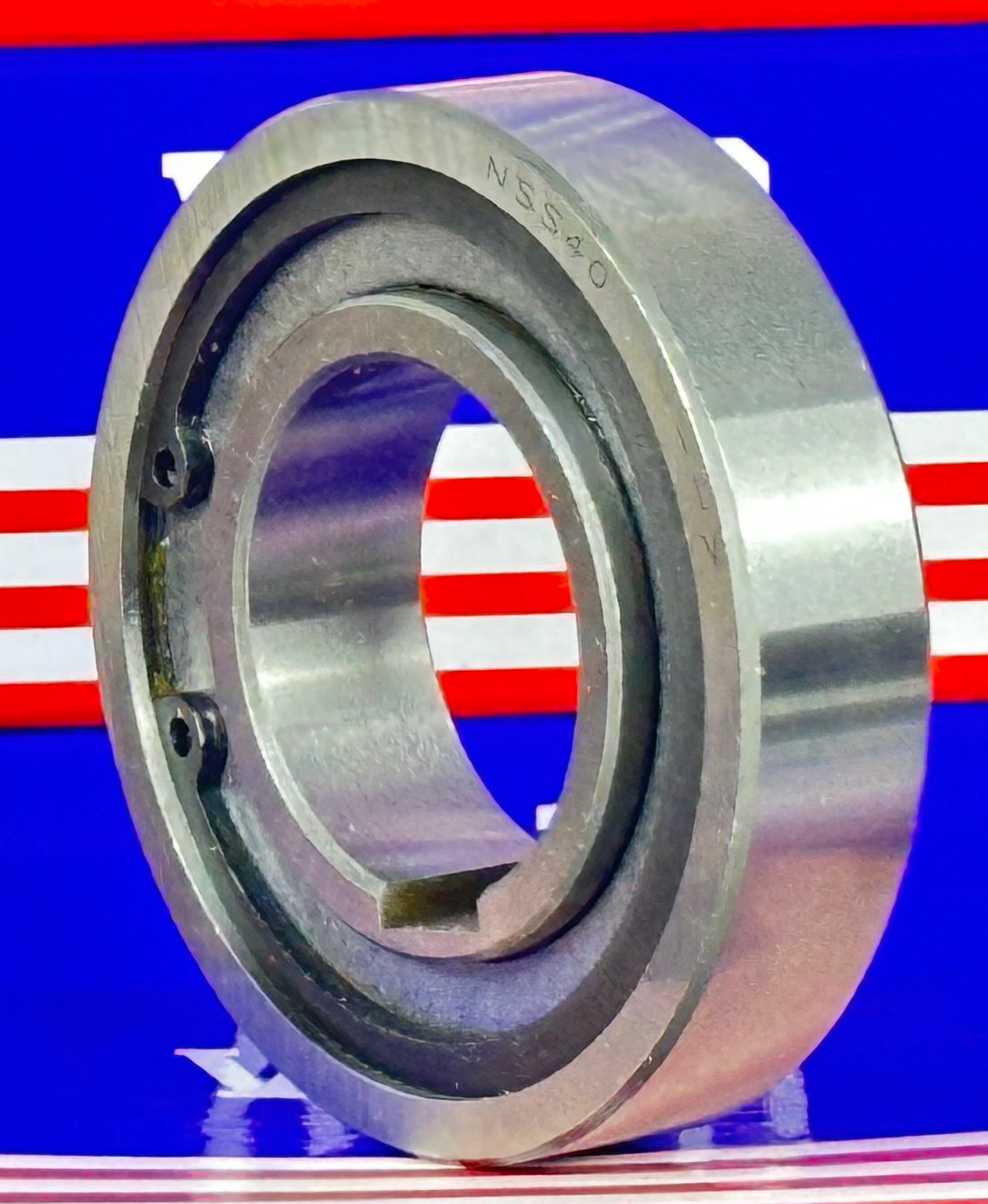

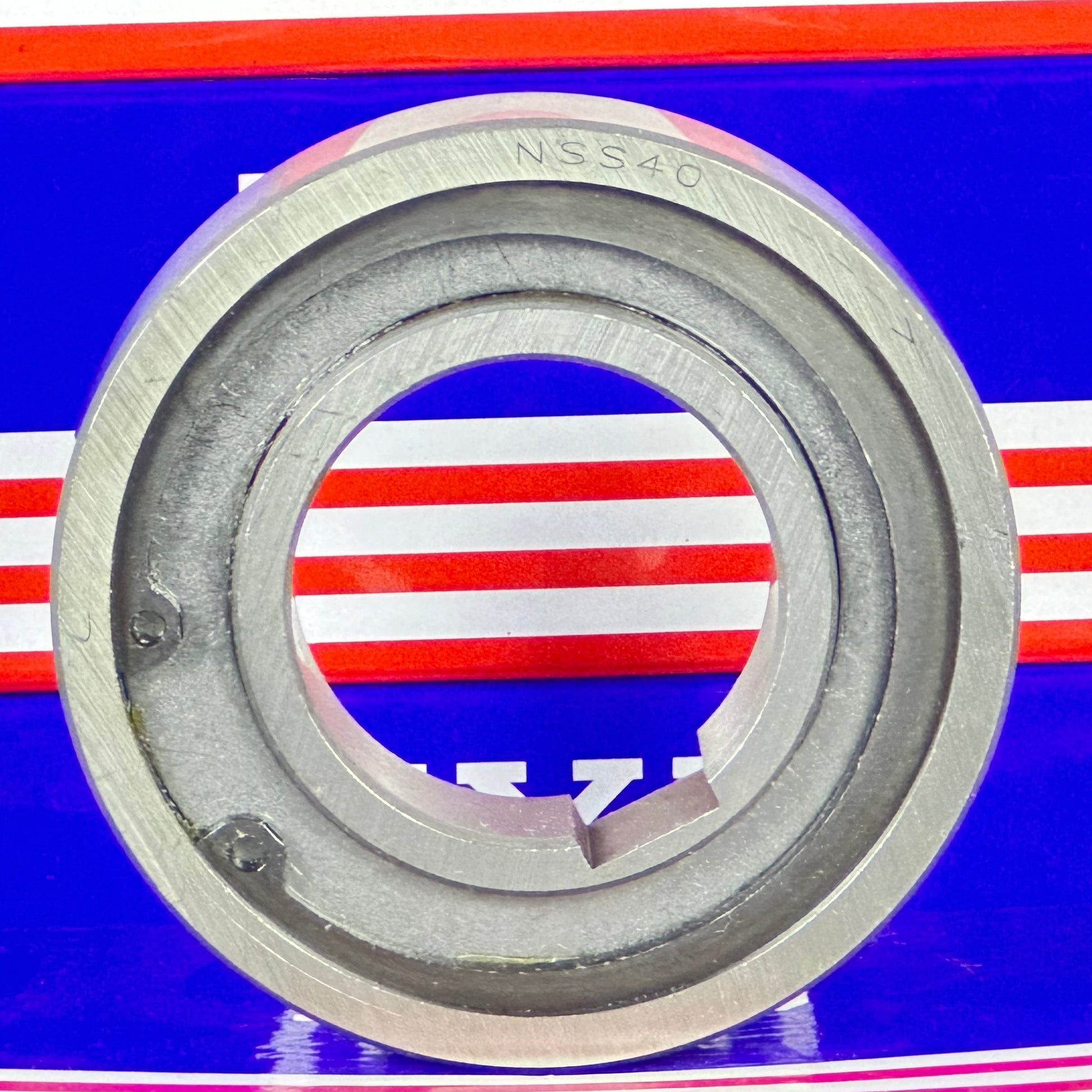

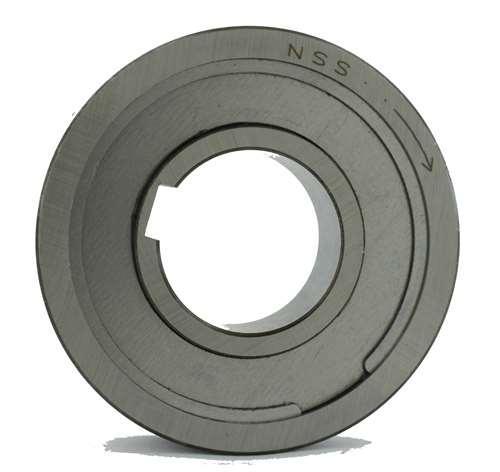

NSS40 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, you will need one of the 6205 beairngs to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. NSS40 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
- NSS40 Clutch
- One Way Clutch
- Applications: Overrunning, Indexing, Backstopping
- non-bearing supported, External 6205 Bearing Support Required
- Dimensions: 40mm x 80mm x 18mm (Metric)
- Inner Diameter: 40mm
- Outer Diameter: 80mm
- Width: 18mm
- Torque: 148 TKN
- Max Torque: 10 Tr
- Inner Race Overrun: 1,200 RPM
- Outer Race Overrun: 1,800 RPM
- Quantity: One Clutch

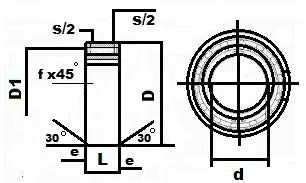

Dimension (mm) |
| d |
D |
D1 |
L |
s |
e |
f |
| 40 |
80 |
72 |
18 |
2.5 |
0.8 |
1 |
|
