NSS10 One-Way 10x30x9 Bearing Support Required Backstop Clutch

NSS10 One-Way 10x30x9 Bearing Support Required Backstop Clutch

Regular price $35.99 USD
Regular price $39.99 USD Sale price $35.99 USD
Sale Sold out
Shipping calculated at checkout.
NSS10 One Way Clutch
One Clutch


NSS10 is a one-way clutch, that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, you will need one of the 6205 beairngs to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. NSS10 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • NSS10 Clutch
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 10mm x 30mm x 9mm (Metric)
  • Inner Diameter: 10mm
  • Outer Diameter: 30mm
  • Width: 9mm
  • Torque: 5.4 TKN
  • Max Torque: 0.36 Tr
  • Inner Race Overrun: 3,500 RPM
  • Outer Race Overrun: 5,200 RPM
  • Quantity: One Clutch

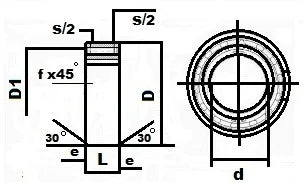

Dimension (mm)
d D D1 L s e f
10 30 25.9 9 13 0.6 0.6
