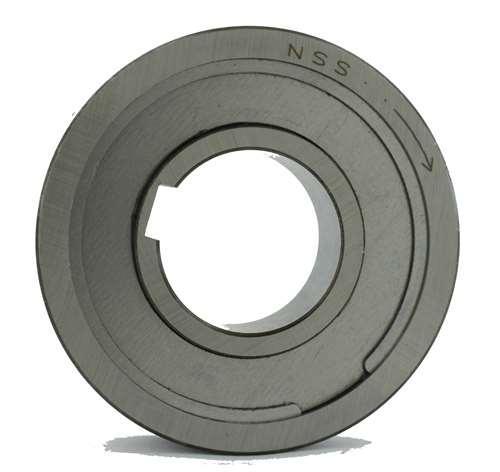

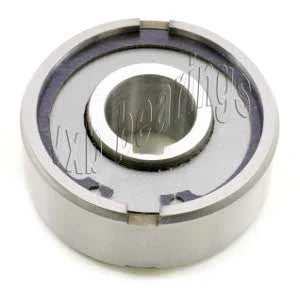

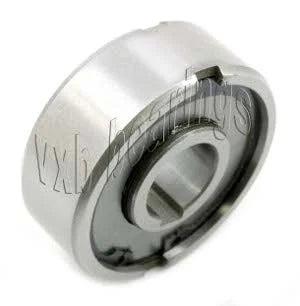

NFS8 One-Way 8x35x13 Backstop Clutch

NFS8 One-Way 8x35x13 Backstop Clutch

Regular price $35.99 USD
Regular price $39.99 USD Sale price $35.99 USD
Sale Sold out
Shipping calculated at checkout.
NFS8 One Way Clutch
8mm x 35mm x 13mm


NFS8 is a one-way clutch, One way Sprag/Clutch Freewheel and also called as Backstops, NFS8 is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • NFS8 One Way Clutch Bearing
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • non-bearing supported, External Bearing Support Required
  • Dimensions: 8mm x 35mm x 13mm (Metric)
  • Inner Diameter: 8mm
  • Outer Diameter: 35mm
  • Width: 13mm
  • Torque: 9.2 TKN
  • Resistance Torque: 1.6 TR
  • Quantity: One Clutch

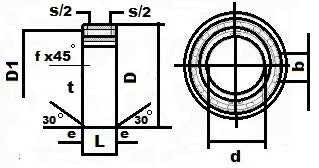

Dimension (mm)
d D L D2 b t s e f
8 35 13 28 4 1.4 2.4 0.6 0.3
