NBK Japan BRPMS-24-S Flange Type Ball Transfer Unit - Spring Plunger Function for Upward Facing Applications
NBK Japan BRPMS-24-S Flange Type Ball Transfer Unit - Spring Plunger Function for Upward Facing Applications
Regular price
$78.65 USD
Regular price
$87.39 USD
Sale price
$78.65 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| BRPMS-24-S Flange Type Ball Transfer Unit with Spring Plunger Function for Upward Facing Applications |

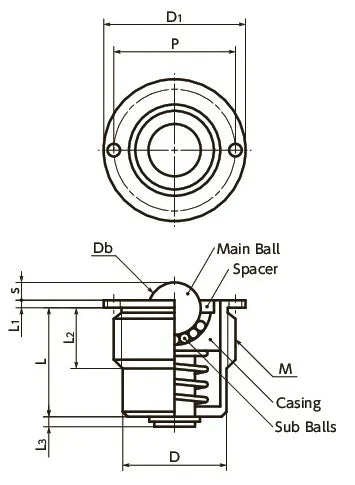

| Part Number | M | L | s | L1 | L2 | L3 | D1 | D | Db | P | Withstand Load (N) |
| BRPMS-24-S | 24 x 1.5 | 21.5 | 3.5 | 1.5 | 12 | 2 | 28 | 20.5 | 10.32 | 23 | 24 / 55 |
is a flange type ball roller with spring plunger function for upward facing applications such as conveyance, fixing and locating work, torque limiting, and indexing. Because the body section is press fitted, height can be reduced. These rollers can also be used as a general spring plunger with ball for fixing and locating the workpiece. The smooth rotation of the ball reduces friction between the main ball and the receiving side.
