NB TWA4WUU 1/4" Ball Bushing Block Linear Motion
NB TWA4WUU 1/4" Ball Bushing Block Linear Motion
Regular price
$142.19 USD
Regular price
$157.99 USD
Sale price
$142.19 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
TWA4WUU:Slide Unit Pillow Block Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
1/4" Double Wide Block, Slide Unit Pillow Block (Inch Series), the inner diameter(bore) 1/4" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

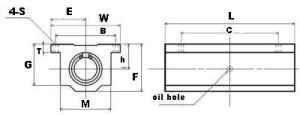

Major Dimensions (inches) | Mounting Dimensions | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
h | E | W | L | F | T | G | M | B | C | S |
7/16" | 13/16" | 1-5/8" | 2-1/2" | 13/16" | 3/16" | 3/4" | 1" | 1-5/16" | 2 | 5/32" |
