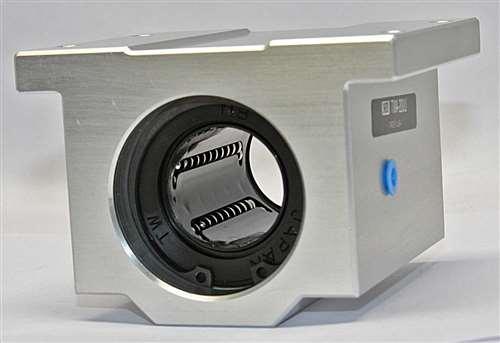

NB TWA16UU 1 inch Ball Bushing Block Linear Motion
NB TWA16UU 1 inch Ball Bushing Block Linear Motion
Regular price
$160.19 USD
Regular price
$177.99 USD
Sale price
$160.19 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

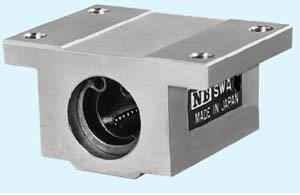

| TWA16UU Pillow Block Slide Unit Nippon Bearing (NB) Linear Systems Made in Japan |
1" Slide Unit Pillow Block (Inch Series), inner diameter(bore)is 1" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

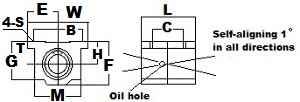

| Major Dimensions (inches) | Mounting Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 1-3/16" | 1-5/6" | 3-1/4" | 2-13/16" | 2-3/16" | 5/8" | 1-15/16" | 2-3/8" | 2-7/8" | 1-3/4" | 7/32" |
