NB TWA10UU 5/8 inch Ball Bushing Block Linear Motion
NB TWA10UU 5/8 inch Ball Bushing Block Linear Motion
Regular price
$103.49 USD
Regular price
$114.99 USD
Sale price
$103.49 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

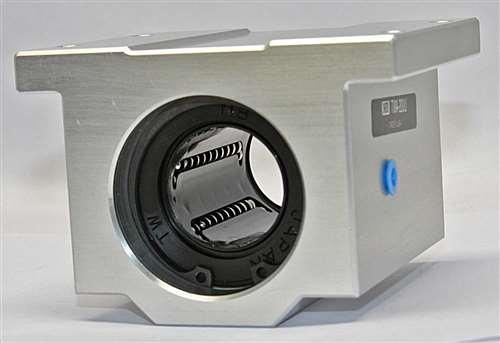

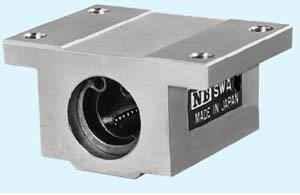

| TWA10UU Pillow Block Slide Unit Nippon Bearing (NB) Linear Systems Made in Japan |
5/8" Slide Unit Pillow Block (Inch Series), inner diameter(bore)is 5/8" inch dimensions with steel retainer, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

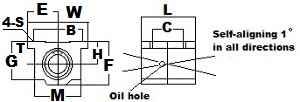

| Major Dimensions | Mounting Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 7/8" | 1-1/4" | 2-1/2" | 1-15/16" | 1-5/8" | 9/32" | 1-7/16" | 1-3/4" | 2-1/8" | 1-1/8" | 3/16" |
