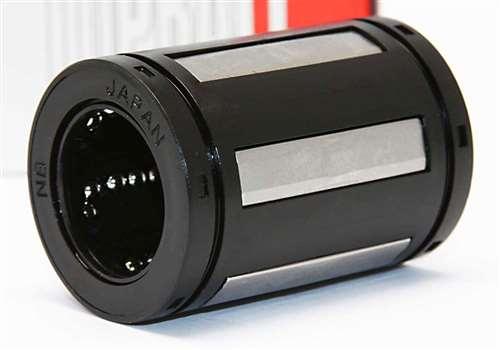

NB TW20 NB Self Aligning Ball Bushings 1-1/4" Linear Motion

NB TW20 NB Self Aligning Ball Bushings 1-1/4" Linear Motion

Regular price $69.30 USD
Regular price $77.00 USD Sale price $69.30 USD
Sale Sold out
Shipping calculated at checkout.
TW20:Top Ball:Made in Japan
High Load Standard type:NB Linear Systems
Self Aligning Ball Bushing


TW20 1 1/4" Bore High Load Standard type Top Ball inch type linear motion ball bushings/bearings, inner diameter(bore) is 1 1/4" inch dimensions with built-in seals, the Topball slide bush is a high performance bushing with three times the load capacity, capable of providing up to 27 times normal travel life of a conventional slide bushing, high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • TW20 Ball Bearing
  • Linear Motion Ball Bushing
  • Ball circuit: 5
  • Size: 1 1/4" x 2" x 2 5/8" inch
  • Bearing Inner Diameter: 1 1/4" inch
  • Bearing Outer Diameter: 2" inch
  • Bearing Length: 2 5/8" inch
  • Dynamic Load Rating: 5472 N
  • Static Load Rating: 6806 N
  • Quantity: 1 Bearing
