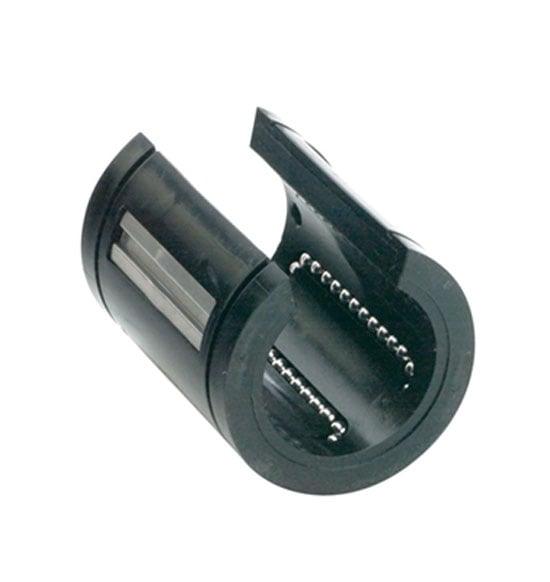

NB TW12UU OP 3/4" Self Aligning Ball Bushings Linear Motion

NB TW12UU OP 3/4" Self Aligning Ball Bushings Linear Motion

$46.79 USD
$51.99 USD $46.79 USD
Sale Sold out
Shipping calculated at checkout.

TW12UU OP TopBall
Made in Japan:
High Load Standard type : NB Linear Systems
Self Aligning Ball Bushing

TW12UU OP 3/4" Bore High Load Standard type TopBall inch type linear motion ball bushings/bearings, inner diameter(bore) is 3/4" inch dimensions with built-in seals, the Topball slide bush is a high performance bushing, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • Ball circuit: 6
  • Dynamic load rating: 470 LBF
  • Static load rating: 590 LBF

Type
Dimensions(Inches)
Shaft
diameter
dr D L B W D1
inch tolerance inch tolerance inch tolerance
TW12UU-OP 3/4" 0-0.0005 1-1/4" 1-5/8" 0-0.02 1.272" 0-0.02 0.0559" 1.176" 3/4"

TOPBALL FEATURES

  1. Increased Load Capacity

  2. Longer Travel Life

  3. Self Aligning Capability

  4. Floating Integral Wiper Seal

  5. Clearance Adjustable:

  6. Cost Effectiveness:
    TOPBALL's higher load capability and longer travel life enables the use of smaller components such as bushings, housings and shafts, reducing material cost and the overall cost of the system. Longer travel life also extends replacement periods and reduce maintenance cost.
