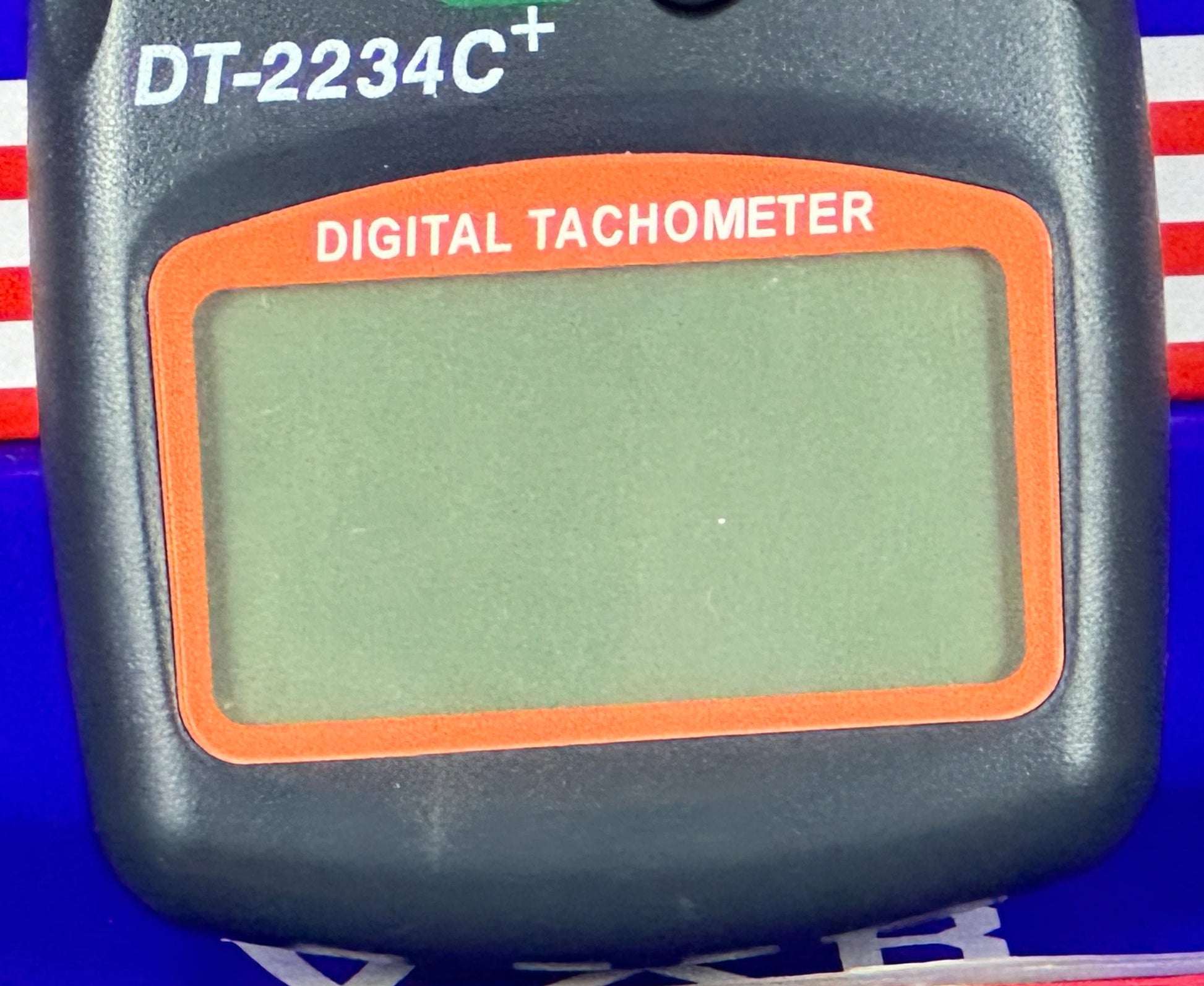

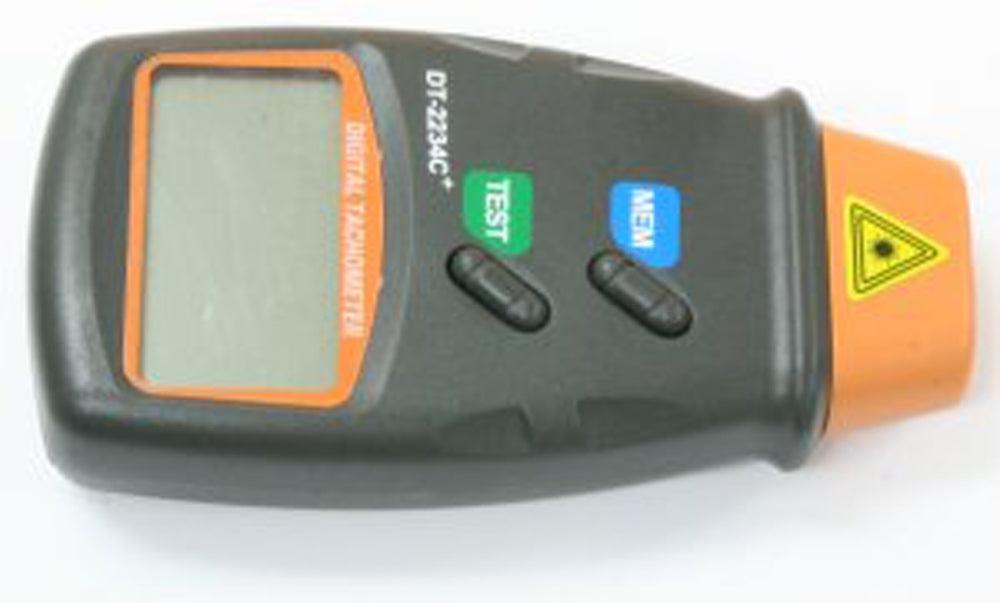

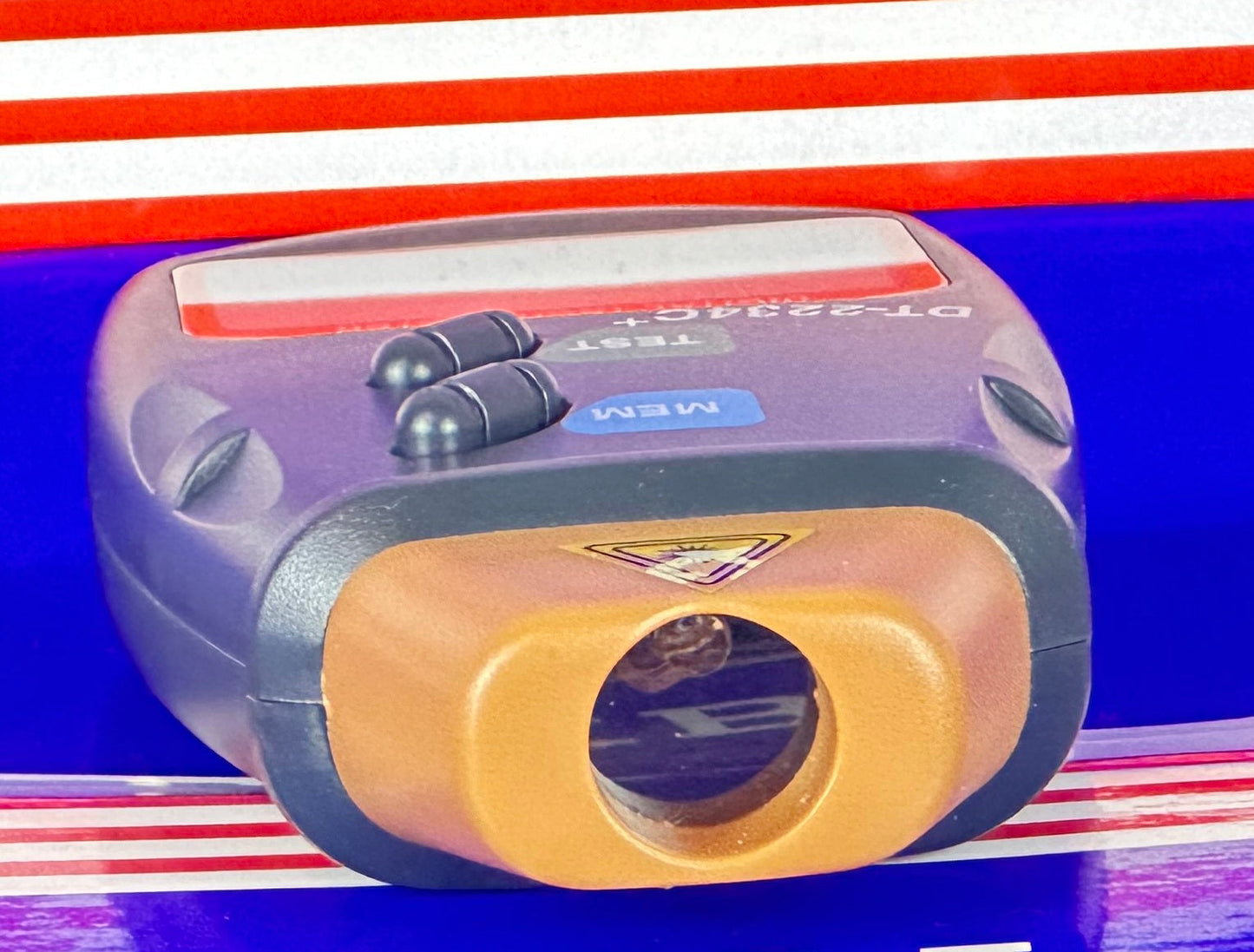

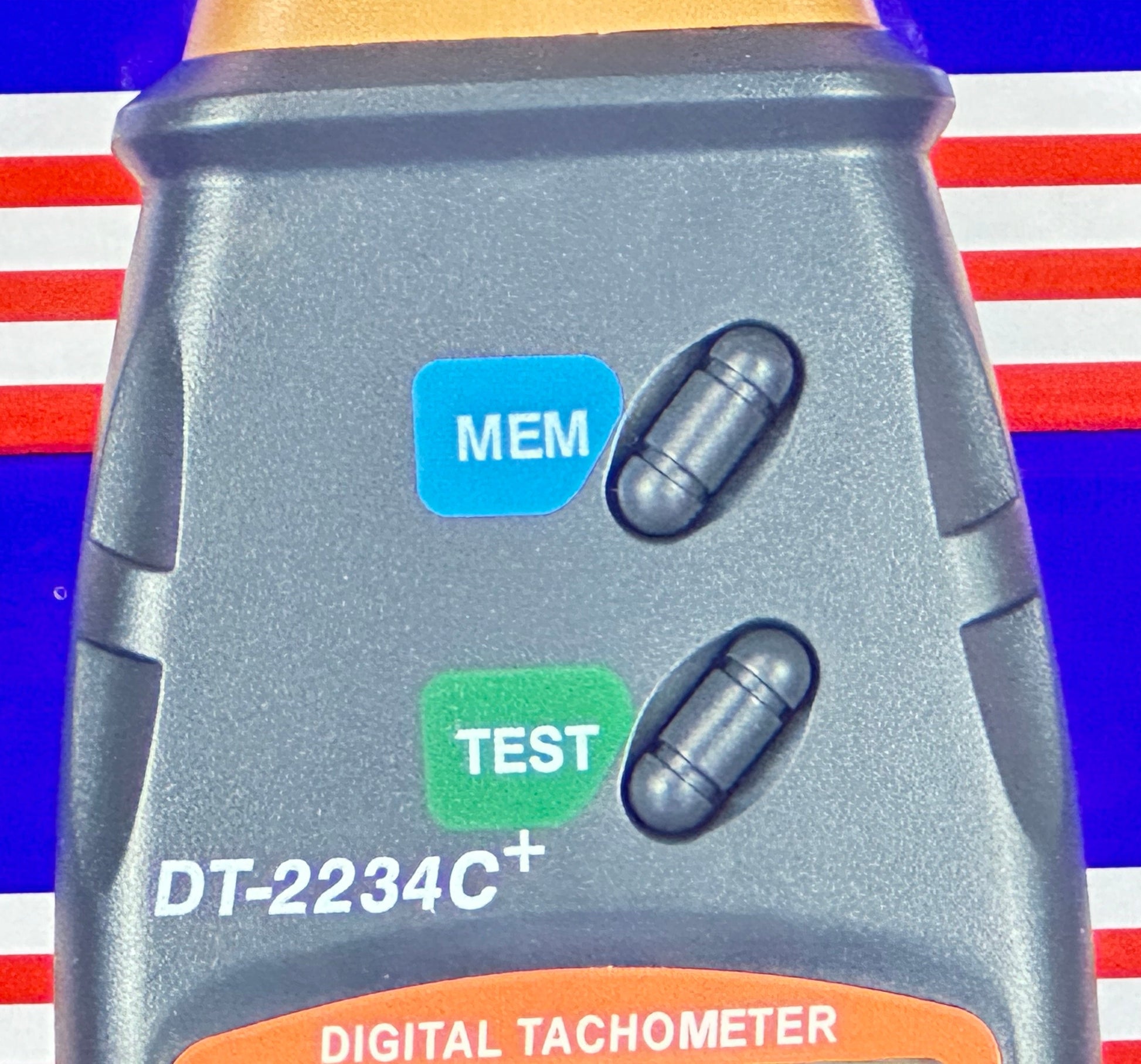

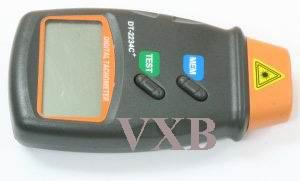

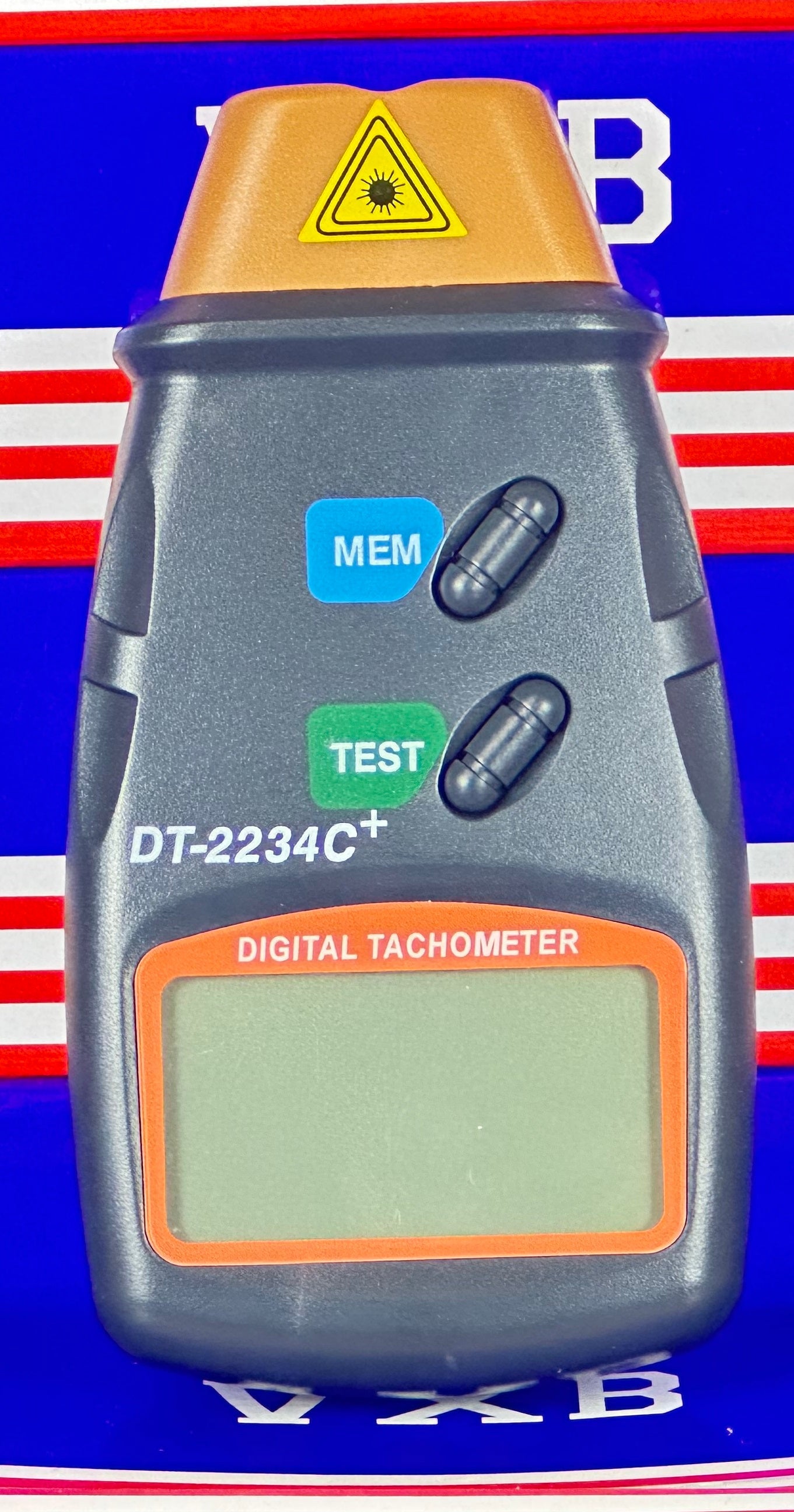

DT-2234C+ LCD Digital Photo Tachometer
Non-Contact IR RPM Meter - 2.5 to 99,999 RPM Range
The DT-2234C+ digital photo tachometer is a highly accurate, non-contact instrument designed to measure rotational speed (RPM) of motors, wheels, fans, and more. With a broad measuring range from 2.5 to 99,999 RPM and high-resolution LCD display, it delivers fast, reliable results without physical contact - ideal for automotive, HVAC, industrial, and lab use.
This handheld device uses infrared laser technology and comes equipped with memory storage for last, max, and min readings, making it an excellent tool for diagnostics and maintenance.
🔧 Key Features:
-
✅ Large Backlit LCD: 5-digit, 18mm display for easy reading
-
✅ Wide Measurement Range: 2.5 - 99,999 RPM
-
✅ High Accuracy: ±0.05% + 1 digit
-
✅ Resolution:
-
0.1 RPM (2.5 - 999.9 RPM)
-
1 RPM (1,000+ RPM)
-
-
✅ Non-Contact Measurement: Laser range of 50-500mm (2-20 inches)
-
✅ Memory Function: Displays last, maximum, and minimum RPM values
-
✅ Ergonomic Design: Lightweight and shaped for comfortable one-hand use
-
✅ Durable Construction: Built for regular industrial use
📦 What’s Included:
-
1 × Digital Laser Photo Tachometer (DT-2234C+)
-
1 × English User Manual
-

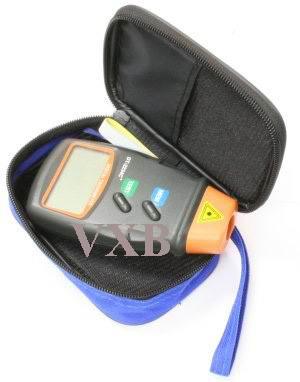

1 × Carrying Pouch
-
1 × 9V Battery
-
3 × Reflective Tape Strips (approx. 75cm each)
📐 Product Size: 130 x 70 x 29mm
⚖️ Weight: 160g
⚙️ Perfect for engineers, mechanics, and technicians - get precise RPM measurements instantly with the DT-2234C+ digital photo tachometer.
