KB50G-OP NB Open Bearing 50mm Ball Bushings Linear Motion Bearing

KB50G-OP NB Open Bearing 50mm Ball Bushings Linear Motion Bearing

$178.19 USD
$197.99 USD $178.19 USD
Sale Sold out
Shipping calculated at checkout.
KB50G-OP NB Open Type:Slide Unit
Made in Japan:NB Linear Systems

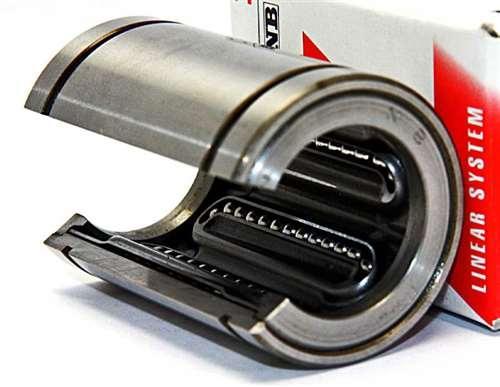

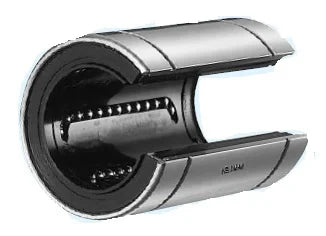

KB50G-OP NB Open Type Bearing, measures an inner diameter of 50mm, retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • KB50G-OP NB Bearing
  • Linear Ball Bushing
  • Shaft Diameter: 50mm
  • Number Of Ball Circuits: 5
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 3820 N
  • Static load rating Cor: 7940 N

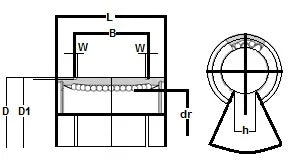

Major Dimensions
dr D L B W D1 h
mm tolerance mm tolerance mm tolerance mm tolerance
50 13-2 75 0-13 100 0-0.3 77.6 0-0.3 2.65 72 21
