GIHN-K12LO Spherical Rod End - M12x1.25 Female Thread - Steel-on-Steel

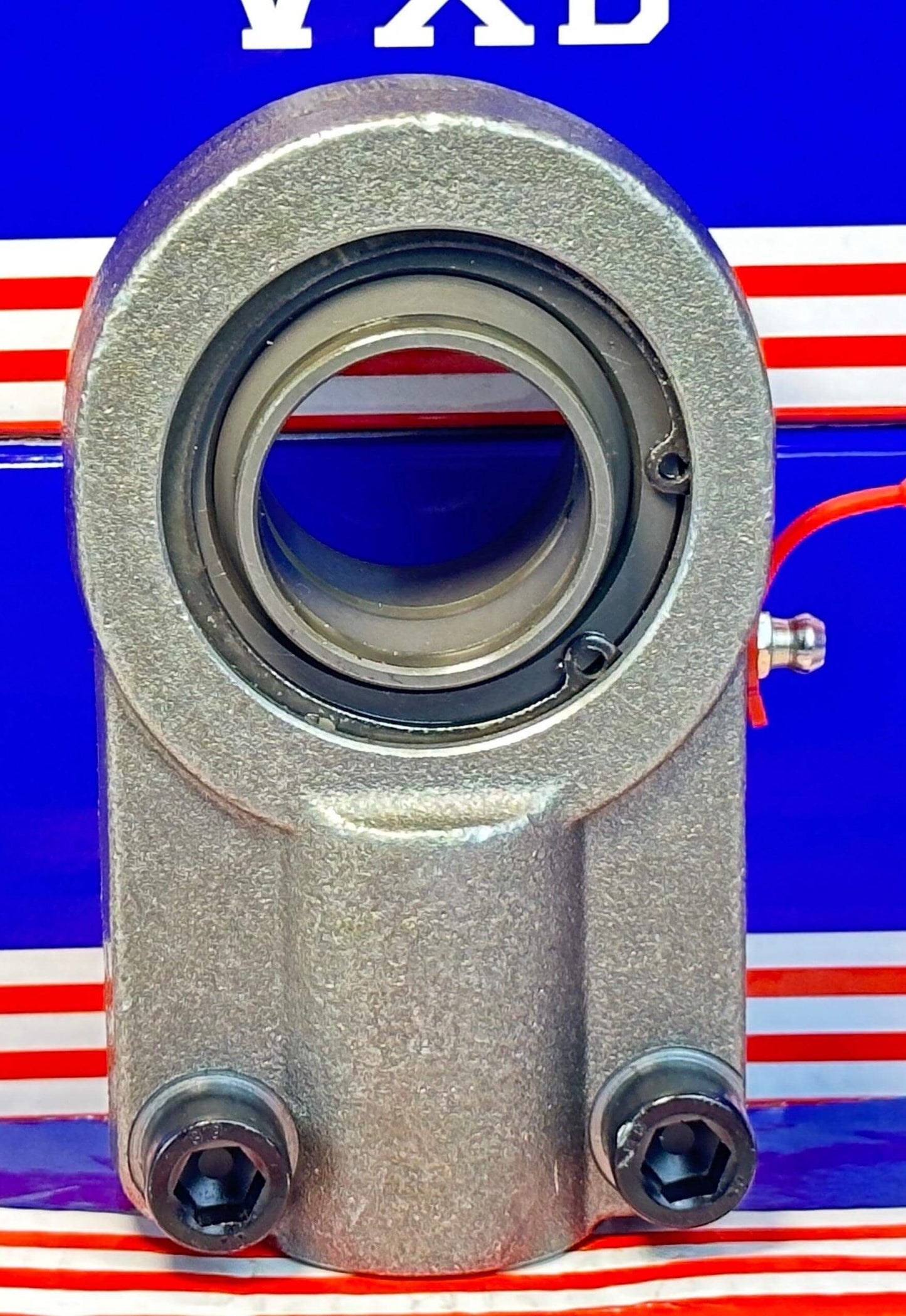

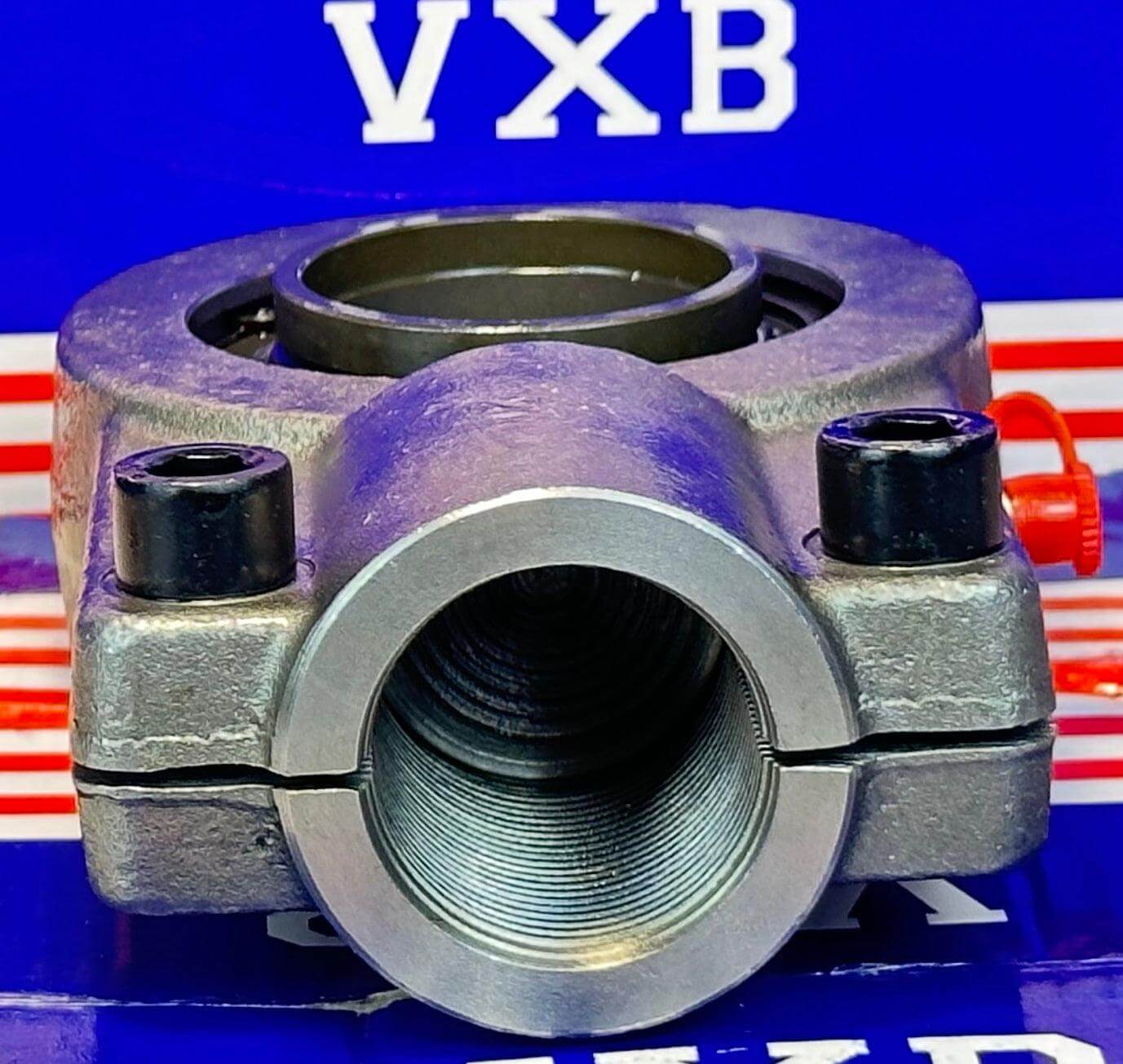

GIHN-K12LO Spherical Rod End Bearing
✔️ 12mm ID - M12x1.25 Female Thread - Steel-on-Steel - 1 Unit

The GIHN-K12LO is a compact, high-strength female rod end bearing designed for 12mm shafts. Featuring steel-on-steel sliding contact surfaces and a fine-threaded M12x1.25 connection, this bearing is ideal for linkages in light industrial machinery, control arms, or compact mechanical systems.

✅ Inner diameter (bore): 12mm
✅ Outer diameter: 32mm
✅ Width: 12mm
✅ Thread: M12x1.25 (female, 6H tolerance)
✅ Contact surfaces: Steel/Steel
✅ Application: Precision linkages, motion systems, light-duty mechanical arms
✅ Brand: VXB Bearing
✅ Quantity: 1 rod end

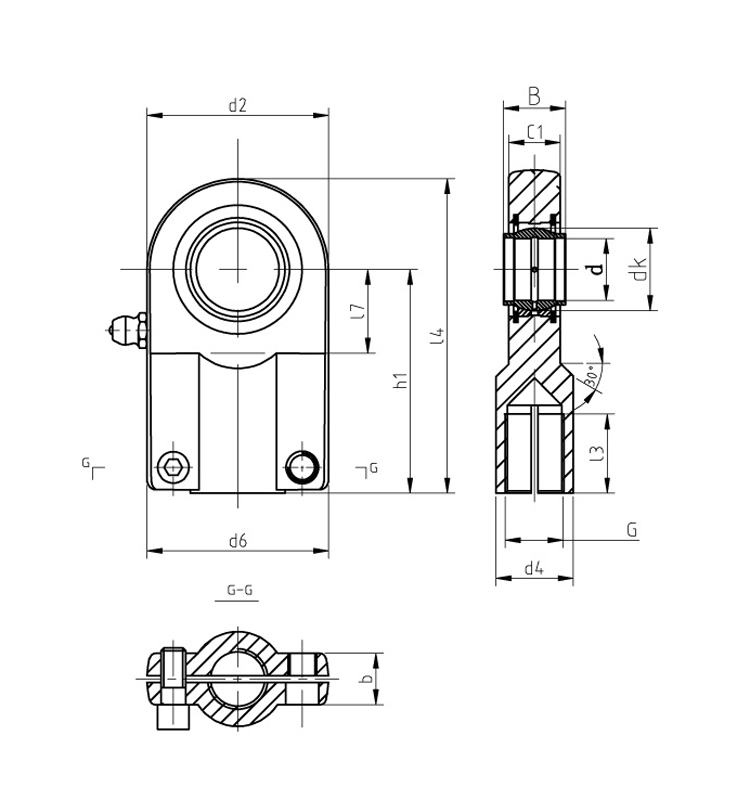

Dimensions Table (mm):

💡 Why are compact steel-on-steel rod ends ideal for light-duty systems?
These rod ends offer tight, consistent movement and high wear resistance in a small footprint. They’re perfect for space-constrained applications that still require reliable axial and radial load handling.

Small but mighty - install the GIHN-K12LO for precision alignment and lasting performance in compact systems!
