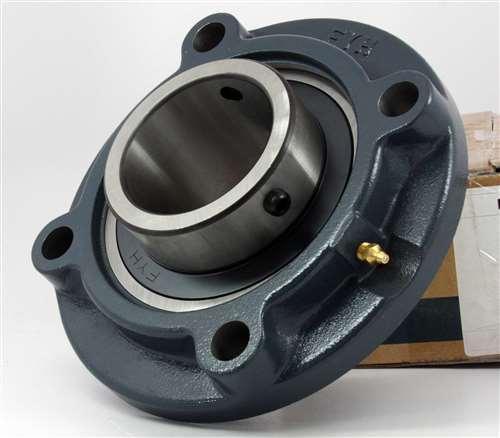

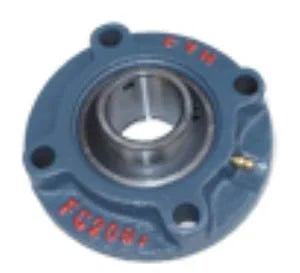

UCFCX13-40 FYH Bearing
Round flanged Mounted Bearing
Cylindrical bore (with set screws)
2-1/2" Inner Diameter Bearing

This four-bolt flange cartridge unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Application are Rotating drum, rotating roller and areas where precise mounting accuracy is required.

  • UCFCX13-40 Bearing
  • Round Flanged Bearing
  • Basic Load (Cr): 62.2 KN
  • Basic Load (Cor): 44.1 KN
  • Bolt Size: 1/2"
  • Bearing No: UCX13-40
  • Quantity: One bearing

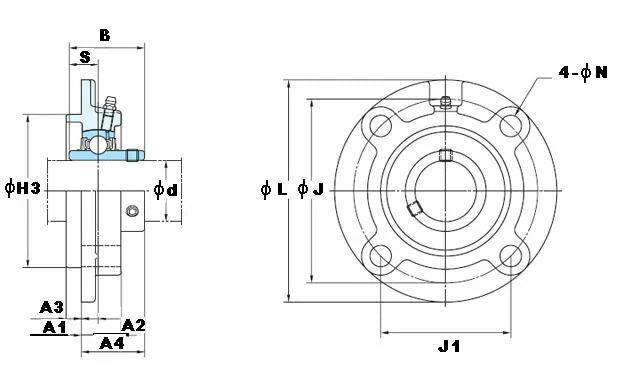

Dimensions (Inches)
d L H3 J J1 N A1 A2 A3 A4 B S
2-1/2" 7-5/8" 5.51" 6-1/2" 4-19/32" 5/8" 1-5/16" 7/16" 25/32" 2-3/16" 2.937 1.189
