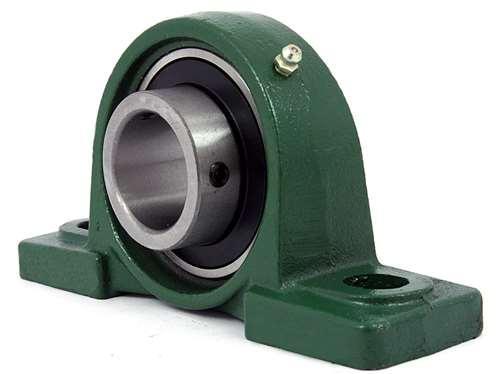

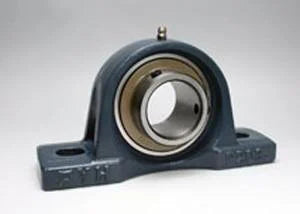

FYH Bearing UCP210 50mm Pillow Block Mounted Bearing

FYH Bearing UCP210 50mm Pillow Block Mounted Bearing

$111.59 USD
$123.99 USD $111.59 USD
Sale Sold out
Shipping calculated at checkout.
FYH Bearings
Pillow Block Bearing
Cylindrical bore (with set screws)
50mm Inner Diameter Bearing

This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

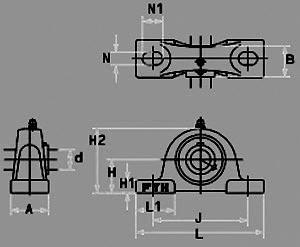

  • d = 50mm
  • H = 57.2mm
  • L = 206mm
  • A = 60mm
  • J = 159mm
  • N = 20mm
  • N1 = 22mm
  • H1 = 19mm
  • H2 = 113mm
  • L1= 63mm
  • B1 = (B1)mm
  • S = 19mm
  • Bolt Size = M16
  • Unit no. = UCP210
  • Bearing = UC210
  • Basic Load kN (Cr)= 35.1
  • Basic Load kN (Cor)= 23.3
